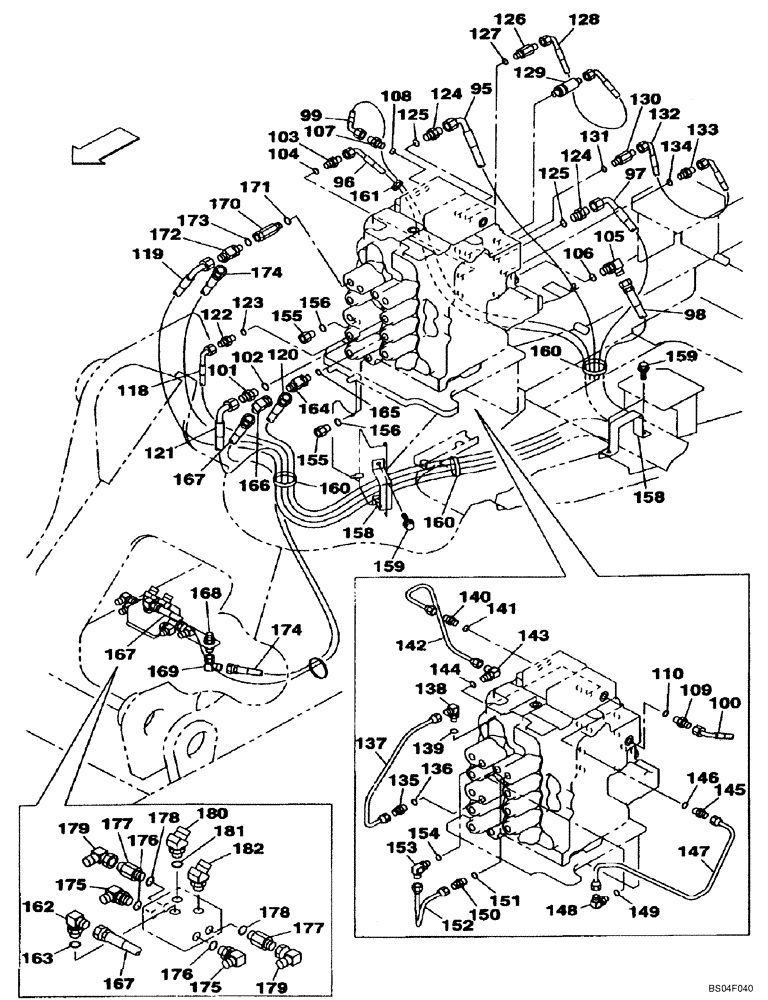

Запчасти Case CX160 (08-30) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITH LOAD HOLD (08) - HYDRAULICS

95

161661A1

HYDRAULIC HOSE

See Figure 08-27

1шт.

96

KHJ1687

HOSE

See Figure 08-27

1шт.

97

161175A1

HOSE ASSY.

See Figure 08-27

1шт.

98

159228A1

HOSE ASSY.

1750 mm (68-7/8 in), See Figure 08-27

1шт.

99

KAJ3099

HYDRAULIC HOSE

See Figure 08-27

1шт.

100

KHJ1221

HYDRAULIC HOSE

See Figure 08-27

1шт.

101

152747A1

ADAPTER

Incl. 102

2шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

159848A1

ORIFICE

Incl. 104

1шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

105

153559A1

ELBOW

Incl. 106

1шт.

106

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

107

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 108

1шт.

108

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

109

162366A1

ADAPTER

Incl. 110

1шт.

110

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

118

161494A1

HOSE ASSY.

See Figure 08-27

1шт.

119

KAJ3203

HYDRAULIC HOSE

See Figure 08-27

1шт.

120

164115A1

HYDRAULIC HOSE

See Figure 08-27

1шт.

121

164115A1

HYDRAULIC HOSE

See Figure 08-27

1шт.

122

159848A1

ORIFICE

Special, Incl. 123

1шт.

123

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

124

152747A1

ADAPTER

Incl. 125

2шт.

125

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

126

162554A1

FITTING

Incl. 127

1шт.

127

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

128

161176A1

HOSE ASSY.

450 mm (17-3/4 in)

1шт.

129

KHJ1399

VALVE, CUSHION

See Figure 08-68

1шт.

130

162554A1

FITTING

Incl. 131

1шт.

131

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

132

161176A1

HOSE ASSY.

450 mm (17-3/4 in)

1шт.

133

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 134

1шт.

134

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

135

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 136

1шт.

136

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

137

KNJ2752

TUBE ASSY.,6 mm ID x 8 mm OD

1шт.

138

KHJ1391

COUPLING

Incl. 139

1шт.

139

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

140

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 141

1шт.

141

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

142

KNJ2585

TUBE ASSY.,6 mm ID x 8 mm OD

1шт.

143

KHJ1391

COUPLING

Incl. 144

1шт.

144

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

145

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 146

1шт.

146

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

147

KNJ2586

TUBE ASSY.

1шт.

148

KHJ1391

COUPLING

Incl. 149

1шт.

149

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

150

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 151

1шт.

151

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

152

KNJ2747

TUBE ASSY.,6 mm ID x 8 mm OD

1шт.

153

KHJ1391

COUPLING

Incl. 154

1шт.

154

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

155

159026A1

SOCKET

Incl. 156

2шт.

156

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

158

161095A1

CLAMP

2шт.

159

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

160

150071A1

MOUNTING CLIP

3шт.

161

150496A1

MOUNTING CLIP

1шт.

162

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 163

1шт.

163

154475A1

O-RING

1шт.

164

162827A1

TEE

Incl. 165

1шт.

165

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

166

153526A1

ELBOW

1шт.

167

KHJ1151

HYDRAULIC HOSE

1шт.

168

162826A1

ADAPTER

1шт.

169

153526A1

ELBOW

1шт.

170

162525A1

STUD

Incl. 171

1шт.

171

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

172

162827A1

TEE

Incl. 173

1шт.

173

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

174

KHJ1151

HYDRAULIC HOSE

1шт.

175

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 176

2шт.

176

154475A1

O-RING

1шт.

177

159226A1

ADAPTER

Incl. 178

2шт.

178

154475A1

O-RING

1шт.

179

153526A1

ELBOW

2шт.

180

157584A1

ELBOW

Incl. 181

1шт.

181

154475A1

O-RING

1шт.

182

163004A1

ELBOW

1шт.
