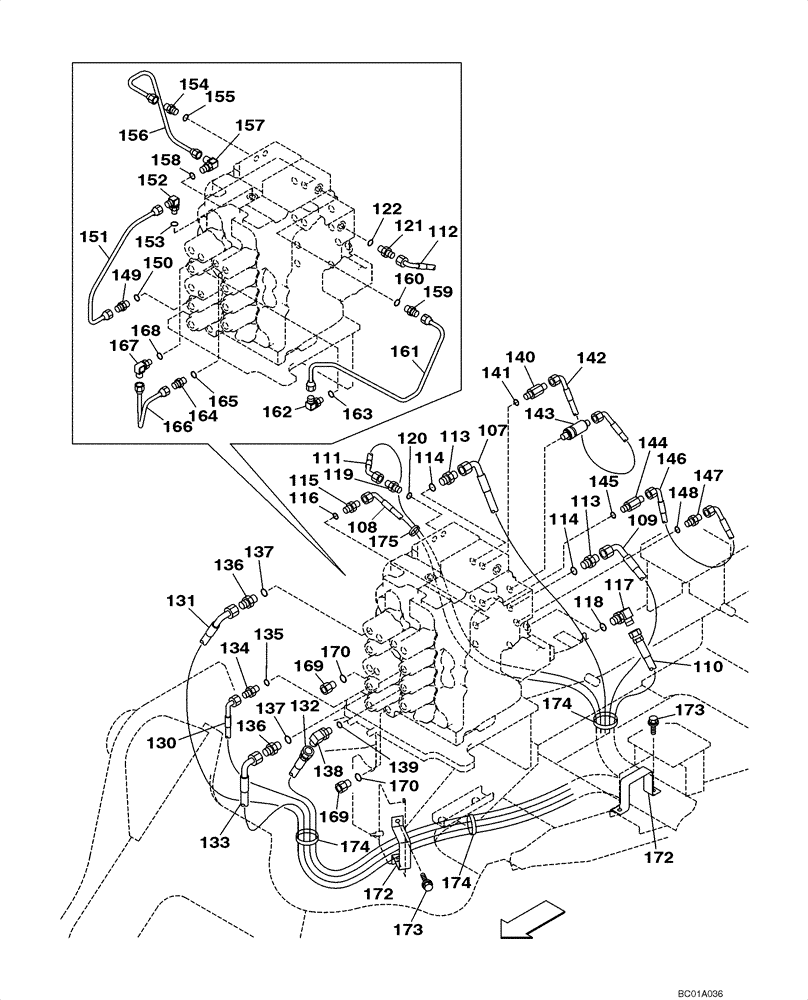

Запчасти Case CX160 (08-29) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
107
161661A1
HYDRAULIC HOSE
See Figure 08-26
1шт.
108
KHJ1687
HOSE
See Figure 08-26
1шт.
109
161175A1
HOSE ASSY.
See Figure 08-26
1шт.
110
159228A1
HOSE ASSY.
1750 mm (68-7/8 in), See Figure 08-26
1шт.
111
KAJ3099
HYDRAULIC HOSE
See Figure 08-26
1шт.
112
KHJ1221
HYDRAULIC HOSE
See Figure 08-26
1шт.
113
152747A1
ADAPTER
Incl. 114
2шт.
114
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
115
159848A1
ORIFICE
Special, Incl. 116
1шт.
116
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
117
153559A1
ELBOW
Incl. 118
1шт.
118
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
119
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 120
1шт.
120
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
121
162366A1
ADAPTER
Incl. 122
1шт.
122
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
130
161494A1
HOSE ASSY.
See Figure 08-26
1шт.
131
KAJ3203
HYDRAULIC HOSE
See Figure 08-26
1шт.
132
164115A1
HYDRAULIC HOSE
See Figure 08-26
1шт.
133
164115A1
HYDRAULIC HOSE
See Figure 08-26
1шт.
134
159848A1
ORIFICE
Special, Incl. 135
1шт.
135
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
136
152747A1
ADAPTER
Incl. 137
2шт.
137
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
138
153559A1
ELBOW
Incl. 139
1шт.
139
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
140
162554A1
FITTING
Long, Incl. 141
1шт.
141
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
142
161176A1
HOSE ASSY.
450 mm (17-3/4 in)
1шт.
143
KHJ1399
VALVE, CUSHION
See Figure 08-68
1шт.
144
162554A1
FITTING
Incl. 145
1шт.
145
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
146
161176A1
HOSE ASSY.
450 mm (17-3/4 in)
1шт.
147
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 148
1шт.
148
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
149
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 150
1шт.
150
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
151
KNJ2752
TUBE ASSY.,6 mm ID x 8 mm OD
1шт.
152
KHJ1391
COUPLING
Incl. 153
1шт.
153
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
154
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 155
1шт.
155
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
156
KNJ2585
TUBE ASSY.,6 mm ID x 8 mm OD
1шт.
157
KHJ1391
COUPLING
Incl. 158
1шт.
158
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
159
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 160, P.I.N. DAC0716099 - DAC0716258
1шт.
160
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
161
KNJ2586
TUBE ASSY.
P.I.N. DAC0716099 - DAC0716258
1шт.
162
KHJ1391
COUPLING
Incl. 163, P.I.N. DAC0716099 - DAC0716258
1шт.
163
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
164
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 165
1шт.
165
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
166
KNJ2747
TUBE ASSY.,6 mm ID x 8 mm OD
1шт.
167
KHJ1391
COUPLING
Incl. 168
1шт.
168
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
169
159026A1
SOCKET
Incl. 170
2шт.
170
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
172
161095A1
CLAMP
2шт.
173
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
4шт.
174
150071A1
MOUNTING CLIP
3шт.
Выбрано товаров: 60
