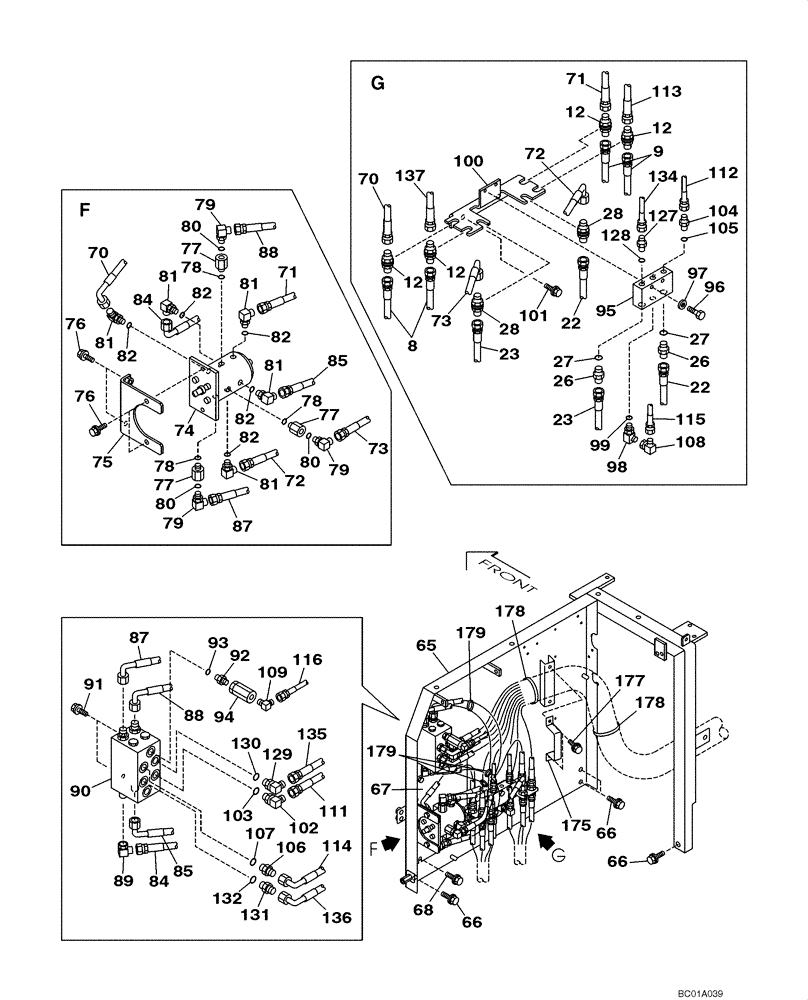

Запчасти Case CX160 (08-28) - PILOT CONTROL LINES, PARTITION - MODELS WITH LOAD HOLD & CONTROL SELECTOR VALVE (08) - HYDRAULICS

8

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

See Figure 08-25

2шт.

9

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-25

2шт.

12

162826A1

ADAPTER

Bulkhead

4шт.

22

KHJ1345

HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm

See Figure 8-25

2шт.

23

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-25

2шт.

26

152747A1

ADAPTER

Incl. 27

2шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

162826A1

ADAPTER

Bulkhead

2шт.

65

KLJ0601

BRACKET

1шт.

66

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

67

KNJ2941

COVER

1шт.

68

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

70

167873A1

HYDRAULIC HOSE,9.50 mm ID x 400.00 mm

1шт.

71

166162A1

HYDRAULIC HOSE,9.50 mm ID x 500.00 mm

1шт.

72

KHJ1384

HYDRAULIC HOSE,9.52 mm ID x 370.00 mm

1шт.

73

KHJ1388

HYDRAULIC HOSE,9.52 mm ID x 320.00 mm

1шт.

74

KHJ2184

VALVE

See Figure 08-68A

1шт.

75

KNJ2946

BRACKET

1шт.

76

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

77

KHJ1584

UNION

Incl. 78

3шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 80

3шт.

80

154475A1

O-RING

1шт.

81

153559A1

ELBOW

Incl. 82

5шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

KHJ1062

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

1шт.

85

KHJ1352

HYDRAULIC HOSE,9.52 mm ID x 600.00 mm

1шт.

87

KAJ2467

HYDRAULIC HOSE

1шт.

88

168411A1

HOSE,650.00 mm

1шт.

89

153526A1

ELBOW

1шт.

90

KNJ14260

VALVE

Replaces KNJ2951, See Figure 08-68B

1шт.

91

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

92

152899A1

HYD CONNECTOR

Incl. 93

2шт.

93

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

94

151552A1

FILTER

1шт.

95

KHJ17120

VALVE SECTION

; Replaces KHJ1973

1шт.

96

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

97

153081A1

WASHER

2шт.

98

KHJ1974

TEE

Incl. 99

1шт.

99

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

100

KHJ1576

BRACKET

1шт.

101

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

102

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 103

1шт.

103

154475A1

O-RING

1шт.

104

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 105

1шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

106

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 107

1шт.

107

154475A1

O-RING

1шт.

108

163814A1

ELBOW

1шт.

109

153603A1

ADAPTER

1шт.

111

161661A1

HYDRAULIC HOSE

See Figure 08-31

1шт.

112

KHJ1687

HOSE

See Figure 08-31

1шт.

113

161175A1

HOSE ASSY.

See Figure 08-31

1шт.

114

159228A1

HOSE ASSY.

1750 mm (68-7/8 in), See Figure 08-31

1шт.

115

KAJ3099

HYDRAULIC HOSE

See Figure 08-31

1шт.

116

KHJ1687

HOSE

See Figure 08-31

1шт.

127

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 128

1шт.

128

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

129

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 130

1шт.

130

154475A1

O-RING

1шт.

131

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 132

1шт.

132

154475A1

O-RING

1шт.

135

KAJ3203

HYDRAULIC HOSE

See Figure 08-31

1шт.

136

164115A1

HYDRAULIC HOSE

See Figure 08-31

1шт.

137

164115A1

HYDRAULIC HOSE

See Figure 08-31

1шт.

175

159036A1

CLAMP

1шт.

177

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

178

150071A1

MOUNTING CLIP

2шт.

179

150496A1

MOUNTING CLIP

250 mm (10 in)

3шт.
