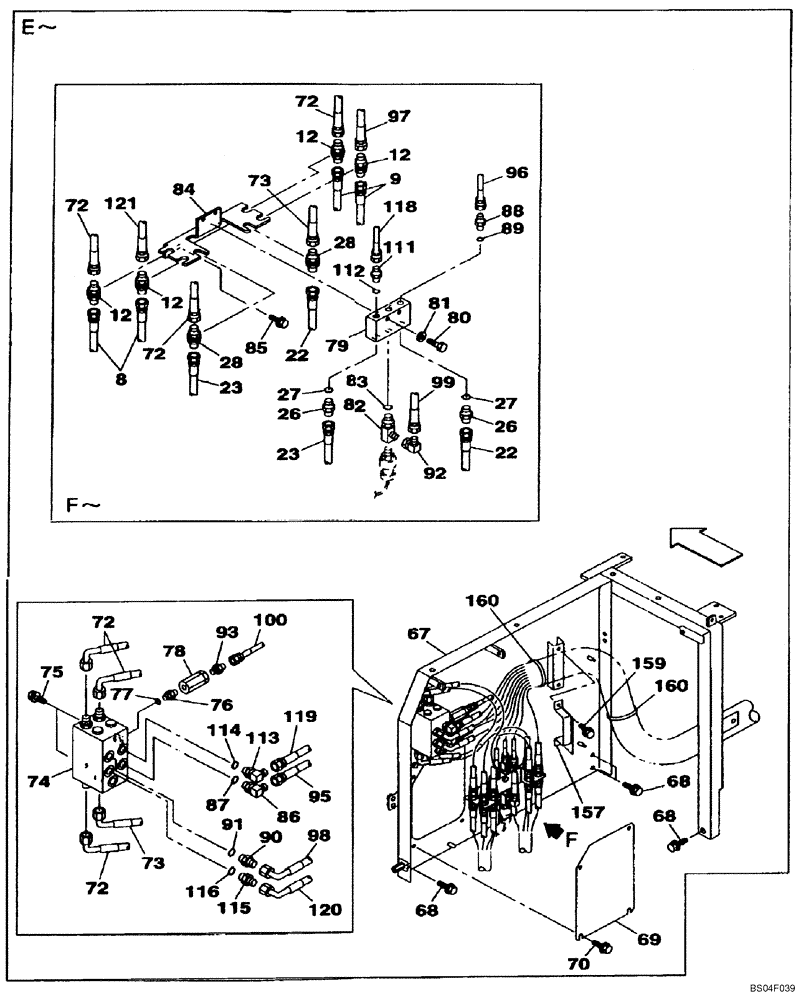

Запчасти Case CX160 (08-27) - PILOT CONTROL LINES, PARTITION - MODELS WITH LOAD HOLD (08) - HYDRAULICS

8

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

See Figure 08-24

2шт.

9

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-24

2шт.

12

162826A1

ADAPTER

Bulkhead

4шт.

22

KHJ1345

HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm

See Figure 08-24

2шт.

23

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-24

2шт.

26

152747A1

ADAPTER

Incl. 27

2шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

162826A1

ADAPTER

Bulkhead

2шт.

67

KLJ0528

BRACKET

1шт.

68

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

69

KNJ2941

COVER

Replaces KNJ2746

1шт.

70

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

72

168411A1

HOSE,650.00 mm

3шт.

73

KTJ1639

HOSE

1шт.

74

KNJ114260

Replaces KNJ2951, See Figure 08-68B, Replaces KNJ2902

1шт.

75

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

76

152899A1

HYD CONNECTOR

Incl. 77

1шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

151552A1

FILTER

1шт.

79

KHJ17120

VALVE SECTION

; Replaces KHJ1973

1шт.

80

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

81

153081A1

WASHER

2шт.

82

KHJ1974

TEE

Incl. 83

1шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

KHJ1576

BRACKET

1шт.

85

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

86

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 87

1шт.

87

154475A1

O-RING

1шт.

88

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 89

1шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 91

1шт.

91

154475A1

O-RING

1шт.

92

163814A1

ELBOW

1шт.

93

153603A1

ADAPTER

Replaces 153596A1

1шт.

95

161661A1

HYDRAULIC HOSE

See Figure 08-30

1шт.

96

KHJ1687

HOSE

See Figure 08-30

1шт.

97

161175A1

HOSE ASSY.

See Figure 08-30

1шт.

98

159228A1

HOSE ASSY.

1750 mm (68-7/8 in), See Figure 08-30

1шт.

99

KAJ3099

HYDRAULIC HOSE

See Figure 08-30

1шт.

100

KHJ1687

HOSE

See Figure 08-30

1шт.

111

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 112

1шт.

112

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

113

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 114

1шт.

114

154475A1

O-RING

1шт.

115

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 116

1шт.

116

154475A1

O-RING

1шт.

118

161494A1

HOSE ASSY.

See Figure 08-30

1шт.

119

KAJ3203

HYDRAULIC HOSE

See Figure 08-30

1шт.

120

164115A1

HYDRAULIC HOSE

See Figure 08-30

1шт.

121

164115A1

HYDRAULIC HOSE

See Figure 08-30

1шт.

157

159036A1

CLAMP

1шт.

159

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

160

150071A1

MOUNTING CLIP

2шт.
