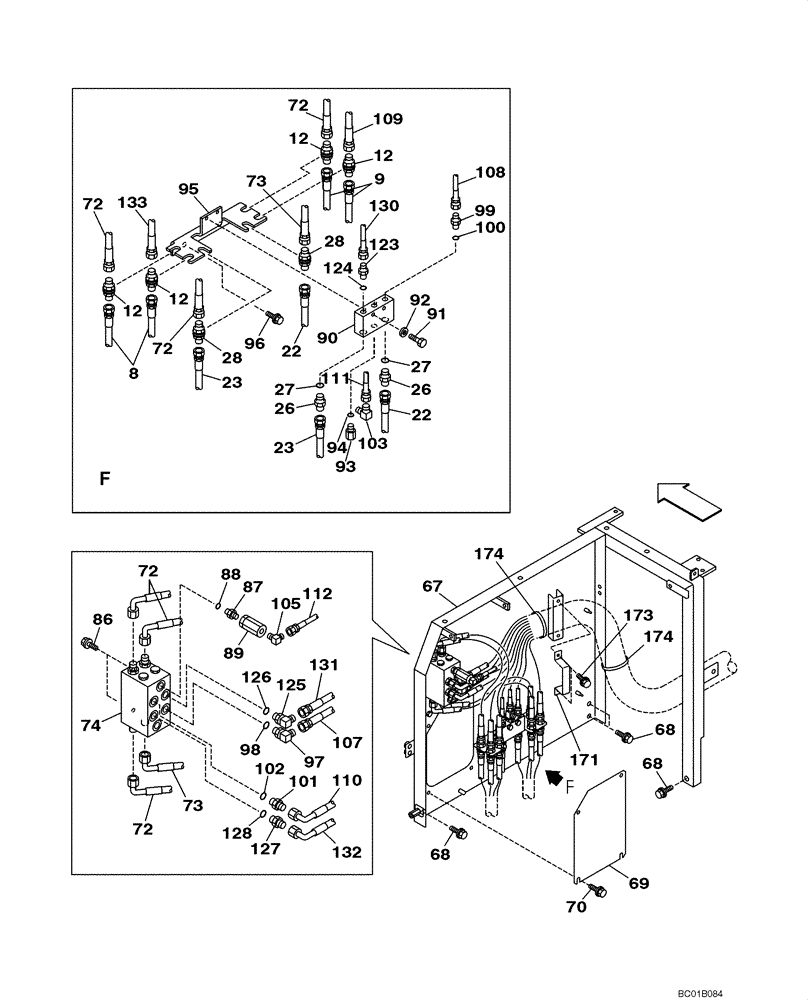

Запчасти Case CX160 (08-26) - PILOT CONTROL LINES, PARTITION - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

8

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

See Figure 08-23

2шт.

9

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-23

2шт.

12

162826A1

ADAPTER

Bulkhead

4шт.

22

KHJ1345

HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm

See Figure 08-23

2шт.

23

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-23

2шт.

26

152747A1

ADAPTER

Incl. 27

2шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

162826A1

ADAPTER

Bulkhead

2шт.

67

KLJ0573

BRACKET

1шт.

68

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

69

KNJ2941

COVER

Replaces KNJ2746

1шт.

70

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

72

168411A1

HOSE,650.00 mm

3шт.

73

KTJ1639

HOSE

1шт.

74

KNJ14260

VALVE

Replaces KNJ2951, See Figure 08-68B, Replaces KNJ2902

1шт.

86

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

87

152899A1

HYD CONNECTOR

Incl. 88

1шт.

88

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

151552A1

FILTER

1шт.

90

KHJ17120

VALVE SECTION

; Replaces KHJ1973

1шт.

91

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

92

153081A1

WASHER

2шт.

93

KHJ1974

TEE

Incl. 94

1шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

KHJ1576

BRACKET

1шт.

96

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

97

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 98

1шт.

98

154475A1

O-RING

1шт.

99

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 100

1шт.

100

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

101

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 102

1шт.

102

154475A1

O-RING

1шт.

103

163814A1

ELBOW

1шт.

105

153603A1

ADAPTER

Replaces 153596A1

1шт.

107

161661A1

HYDRAULIC HOSE

See Figure 08-29

1шт.

108

KHJ1687

HOSE

See Figure 08-29

1шт.

109

161175A1

HOSE ASSY.

See Figure 08-29

1шт.

110

159228A1

HOSE ASSY.

1750 mm (68-7/8 in), See Figure 08-29

1шт.

111

KAJ3099

HYDRAULIC HOSE

See Figure 08-29

1шт.

112

KHJ1221

HYDRAULIC HOSE

See Figure 08-29

1шт.

123

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 124

1шт.

124

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

125

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 126

1шт.

126

154475A1

O-RING

1шт.

127

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 128

1шт.

128

154475A1

O-RING

1шт.

130

161494A1

HOSE ASSY.

See Figure 08-29

1шт.

131

KAJ3203

HYDRAULIC HOSE

See Figure 08-29

1шт.

132

164115A1

HYDRAULIC HOSE

See Figure 08-29

1шт.

133

164115A1

HYDRAULIC HOSE

See Figure 08-29

1шт.

171

159036A1

CLAMP

1шт.

173

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

174

150071A1

MOUNTING CLIP

2шт.
