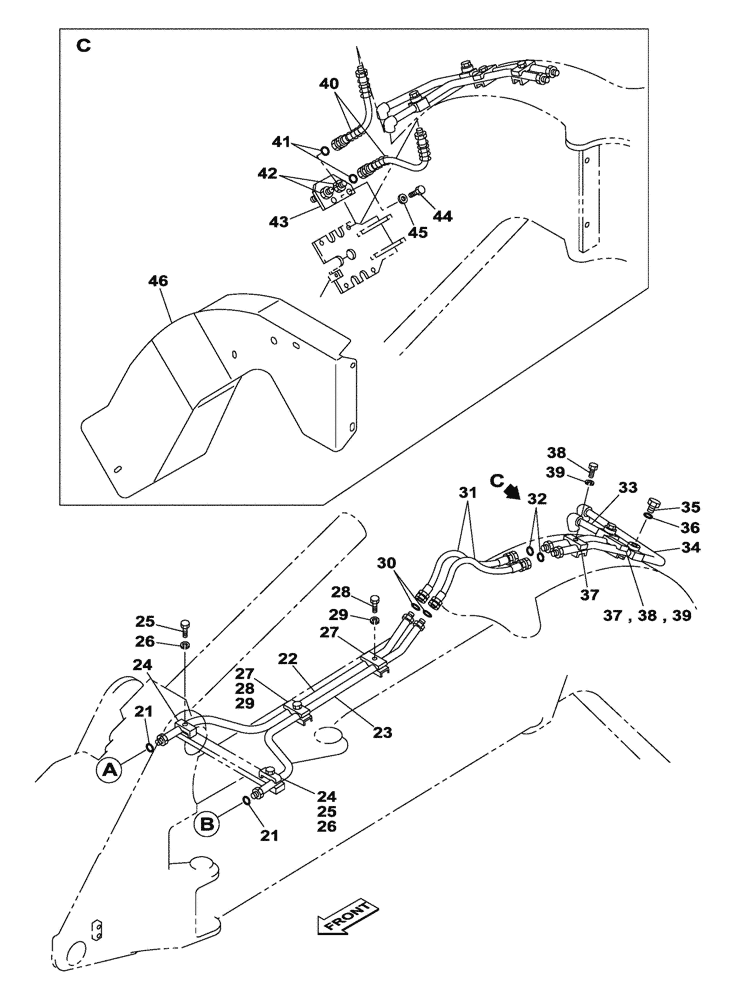

Запчасти Case CX135SR (08-106) - HYDRAULIC CIRCUIT - OFFSET BACKHOE BOOM - OPTIONAL (08) - HYDRAULICS

21

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

22

KMV2480

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

23

KMV2479

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

24

151486A1

CLAMP BRACKET

2шт.

25

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

26

183-112VR

SPRING WASHER

2шт.

27

152085A1

COLLAR

2шт.

28

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

29

183-112VR

SPRING WASHER

2шт.

30

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

31

KMV2306

HOSE ASSY.,19.00 mm ID x 900.00 mm

2шт.

32

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

33

KMV2486

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

34

KMV2487

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

35

152924A1

PLUG

Include(s) 36

2шт.

36

154503A1

O-RING

1шт.

37

152085A1

COLLAR

2шт.

38

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

39

183-112VR

SPRING WASHER

2шт.

40

KMV2275

HOSE ASSY.,19.00 mm ID x 600.00 mm

2шт.

41

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

42

KHJ2041

ADAPTER

2шт.

43

KMV2489

SUPPORT

1шт.

44

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

45

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

46

KMV2490

COVER

See Figure(s) 09-61

1шт.
