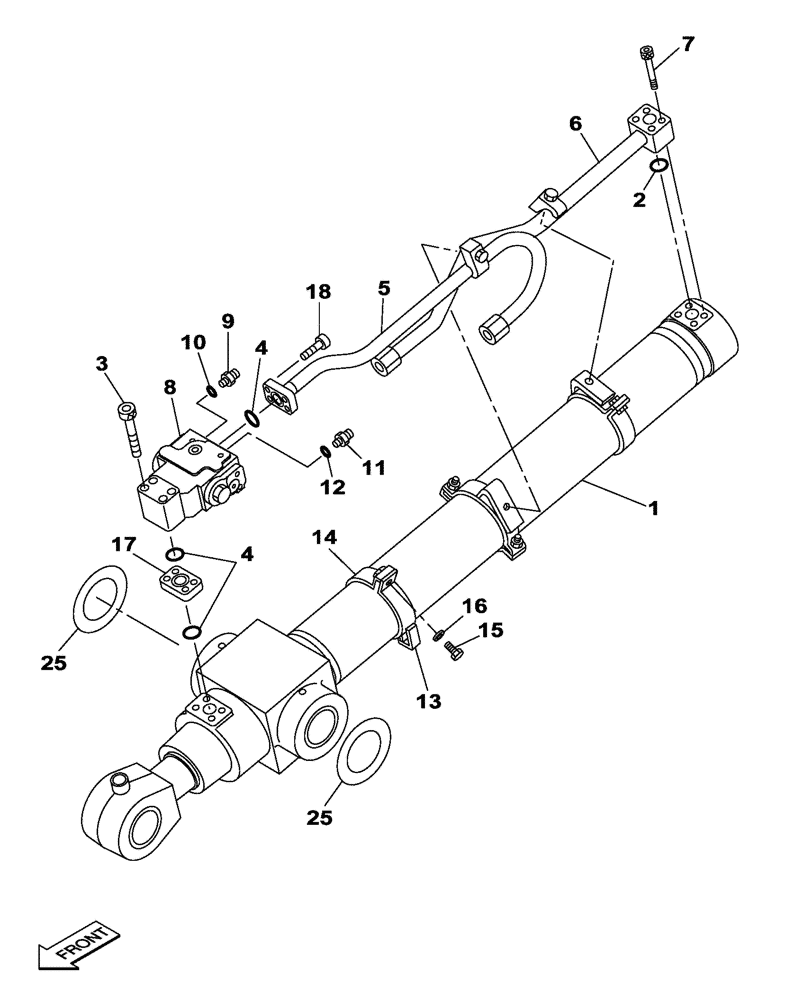

Запчасти Case CX135SR (08-102[02]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER WITH SAFETY VALVE - OFFSET BACKHOE BOOM (08) - HYDRAULICS

1

KMV2555

HYDRAULIC CYLINDER

See Figure(s) 08-103

1шт.

2

154529A1

O-RING

1шт.

3

108R010Y090R

BOLT

4шт.

4

155210A1

O-RING

1шт.

5

KMV13320

HYD TUBE

1шт.

6

KMV2717

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

7

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

8

KRV11110

VALVE SECTION

See Figure(s) 08-74

1шт.

9

152747A1

ADAPTER

Include(s) 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Include(s) 12

1шт.

12

154475A1

O-RING

1шт.

13

KMV2578

CLAMP

1шт.

14

KAV1682

CLAMP BRACKET

1шт.

15

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

16

150409A1

WASHER

2шт.

17

KHV11160

FLANGE

1шт.

18

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

1шт.

25

KRV1177

SHIM

2шт.
