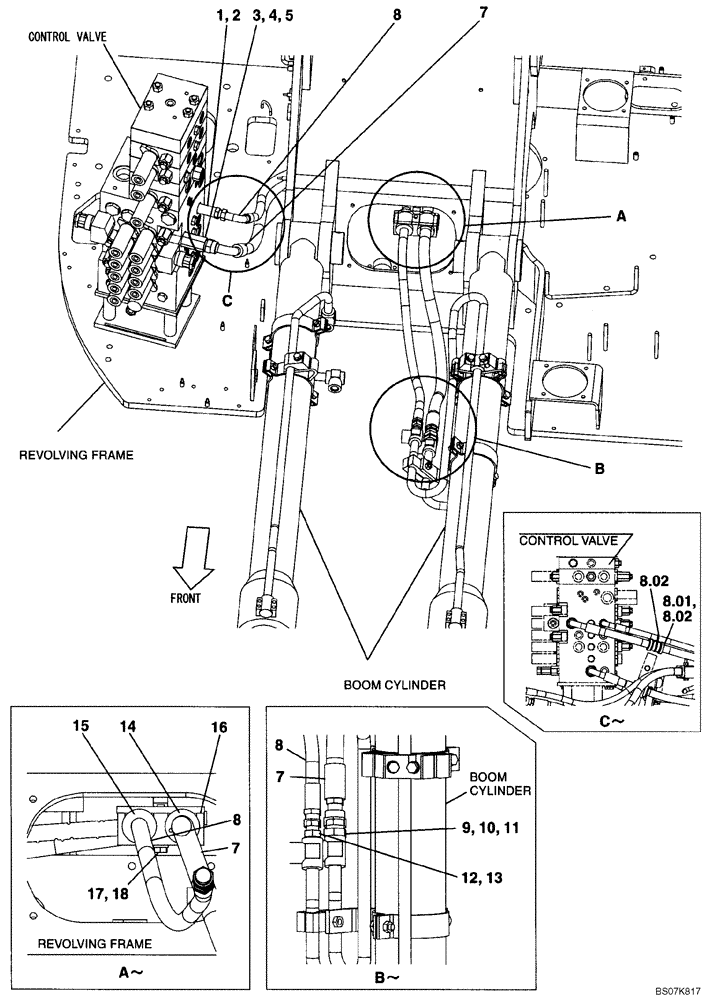

Запчасти Case CX135SR (08-09) - HYDRAULICS - BOOM (08) - HYDRAULICS

1

167645A1

FITTING

Incl. 2

1шт.

2

154487A1

O-RING

1шт.

3

KHJ1495

ADAPTER

Incl. 4

1шт.

4

154503A1

O-RING

1шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

7

KMJ2682

HOSE ASSY.,19.00 mm ID x 2000.00 mm

1шт.

8

KMJ2816

HOSE ASSY.,12.70 mm ID x 1750.00 mm

1шт.

8.01

KHJ2023

HOSE CLAMP

1шт.

8.02

150496A1

MOUNTING CLIP

3шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

10

KHJ1765

ADAPTER

Incl. 11

1шт.

11

154487A1

O-RING

1шт.

12

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 13

1шт.

13

154487A1

O-RING

1шт.

14

KHJ2023

HOSE CLAMP

1шт.

15

KHJ2021

HOSE CLAMP

1шт.

16

KHJ2283

COLLAR

1шт.

17

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

1шт.

18

150409A1

WASHER

1шт.
