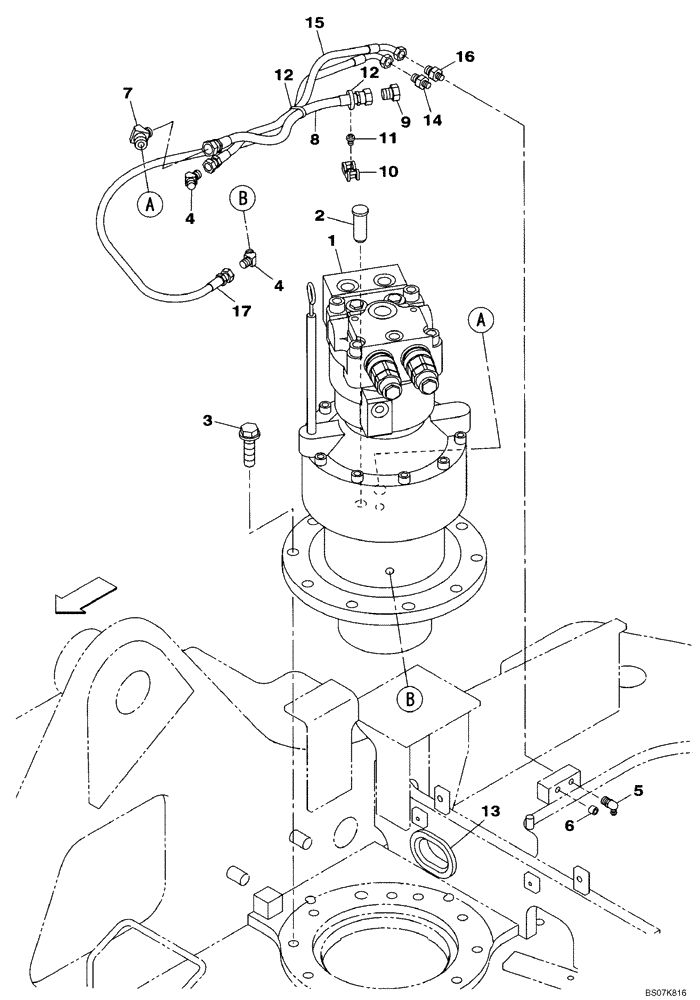

Запчасти Case CX135SR (08-08) - SWING MOTOR - MOUNTING (08) - HYDRAULICS

1

KMC10010

HYDRAULIC MOTOR

See Figure 08-80, 08-81

1шт.

1

KMC10010R

REMAN-MOTO REDUCTION

CX135SR CRAWLER EXCAVATOR TIER 3 (3/08-)

1шт.

1

KMC10010C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

2

150036A1

HEADED PIN,20mm OD x 60mm L

1шт.

3

167584A1

BOLT,Sems, M16 x 60mm

M16X60

9шт.

4

153599A1

ADAPTER

2шт.

5

153631A1

LUBE NIPPLE,1/8"-27 NPT

Replaces 153912A1

1шт.

6

158352A1

PLUG

1шт.

7

KHJ0683

ELBOW

1шт.

8

165781A1

HYDRAULIC HOSE,9.50 mm ID x 350.00 mm

Replaces KHJ18460

1шт.

9

KHP0501

PLUG

1шт.

10

150860A1

COLLAR

1шт.

11

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

12

150496A1

MOUNTING CLIP

2шт.

13

KMJ3056

GASKET

1шт.

14

KRJ4050

ADAPTER

1шт.

15

KHJ1510

HYDRAULIC HOSE

Replaces KHJ2343

1шт.

16

KRJ4050

ADAPTER

1шт.

17

167317A1

HYDRAULIC HOSE,6.30 mm ID x 900.00 mm

Replaces KHJ2090

1шт.
