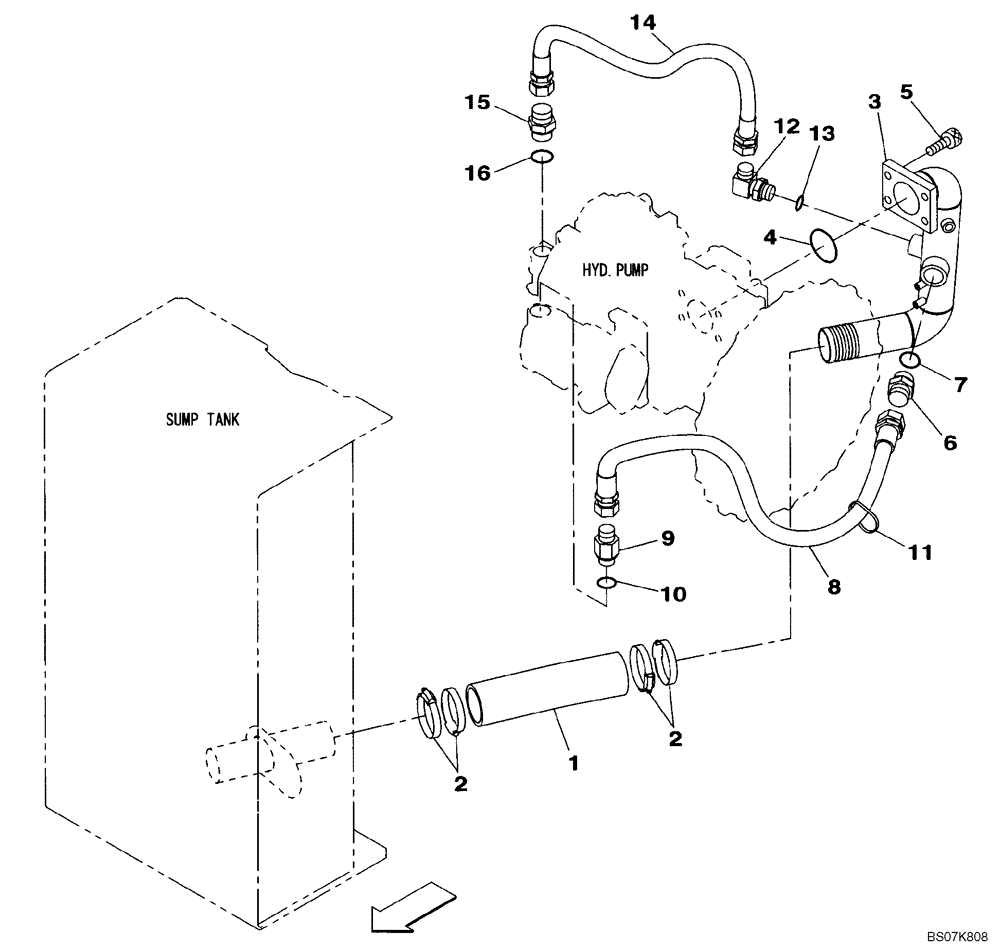

Запчасти Case CX135SR (08-05) - PUMP SUCTION LINE - MODELS WITH DOZER BLADE (08) - HYDRAULICS

1

KMJ1814

HOSE

HOSE ASSY.

1шт.

2

150893A1

CLAMP

4шт.

3

KMJ11360

HYD TUBE

TUBE ASSY.

1шт.

4

154681A1

O-RING

1шт.

5

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

4шт.

6

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 7

1шт.

7

154523A1

O-RING

1шт.

8

KMJ2259

HOSE ASSY.,25.40 mm ID x 770.00 mm

1шт.

9

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 10

1шт.

10

154523A1

O-RING

1шт.

11

150496A1

MOUNTING CLIP

1шт.

12

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 13

1шт.

13

154503A1

O-RING

1шт.

14

KMJ2871

HOSE ASSY.,19.00 mm ID x 650.00 mm

1шт.

15

FAJ0073

STUD

Incl. 16

1шт.

16

154503A1

O-RING

1шт.
