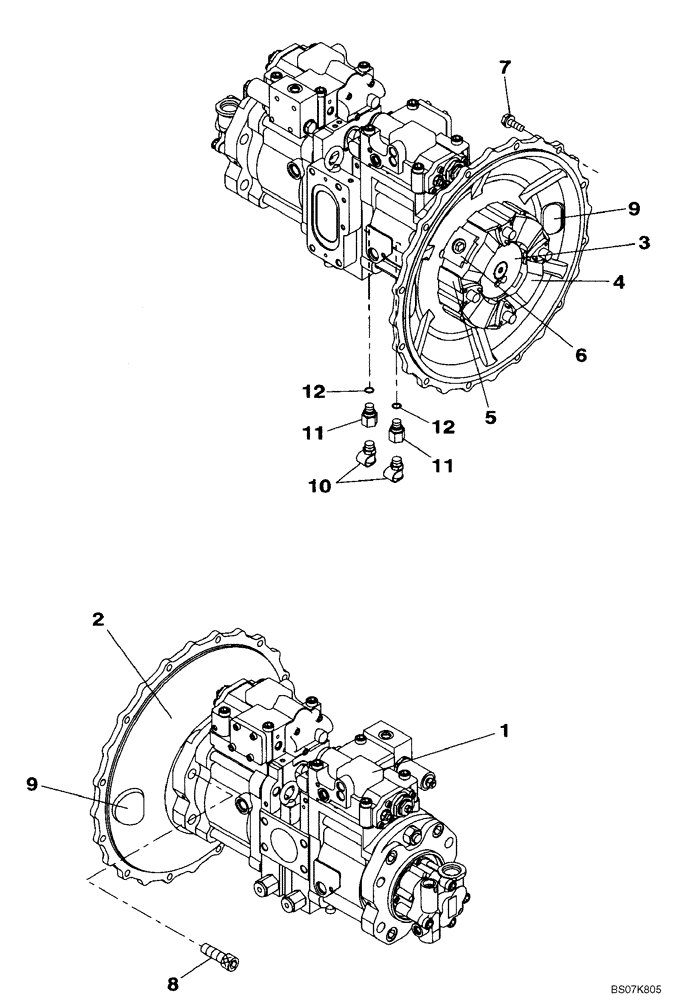

Запчасти Case CX135SR (08-02) - PUMP AND COUPLING - MODELS WITHOUT DOZER BLADE (08) - HYDRAULICS

1

KMJ11920

HYDRAULIC PUMP

See Fig 08-92 01 - 08-92 04

1шт.

1

KMJ11920R

REMAN-HYD PUMP

CX135SR CRAWLER EXCAVATOR TIER 3, PUMP AND COUPLING - MODELS WITHOUT DOZER BLADE (3/08-)

1шт.

1

KMJ11920C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

KNJ3028

FLANGE

1шт.

3

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

4шт.

4

166347A1

BOLT,Sems, M10 x 30mm

ELEMENT

9шт.

5

KNJ10641

FLEXIBLE COUPLING

Coupling, Incl 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

INSERT, COUPLING

1шт.

7

KNJ11380

BOLT

M10X30

1шт.

8

KNJ11390

FLANGE

1шт.

9

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

RUBBER

3шт.

10

KHJ2620

BUSHING

Incl 11

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

12

KHJ2656

GROMMET

Rubber

2шт.
