(06-06) - HYDRAULICS - TRACK DRIVE - MODELS WITH DOZER BLADE

Запчасти Case CX135SR (06-06) - HYDRAULICS - TRACK DRIVE - MODELS WITH DOZER BLADE (06) - POWER TRAIN

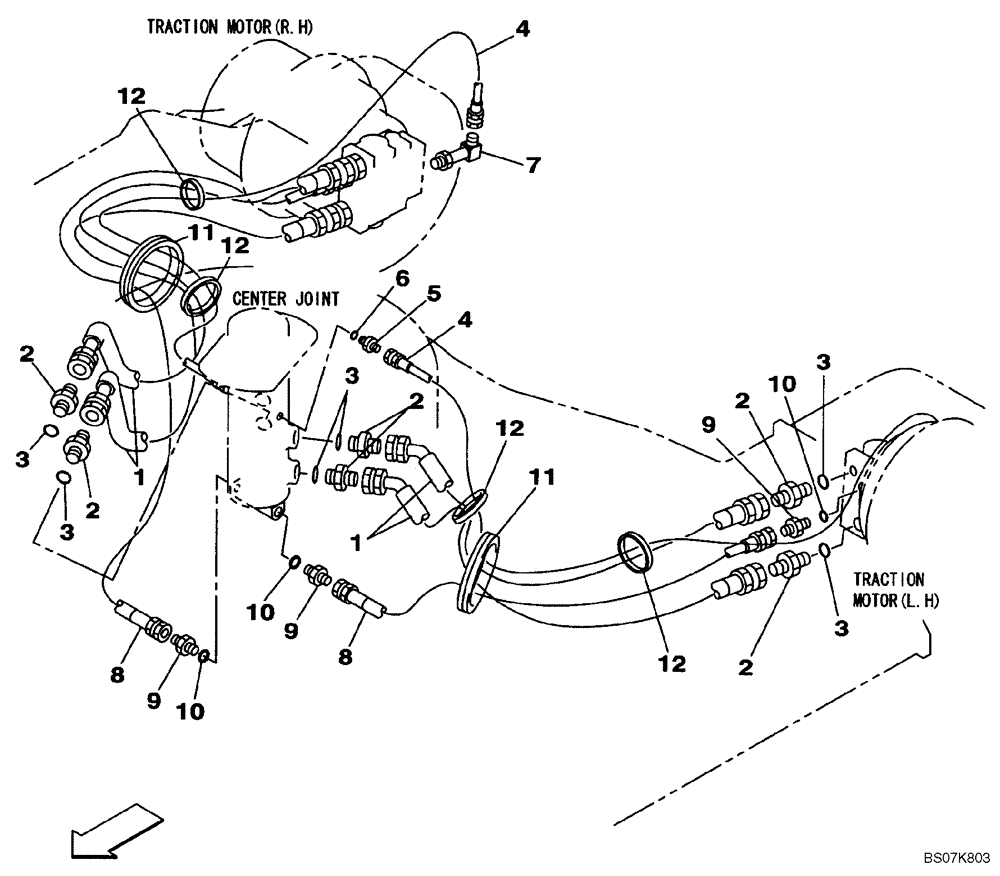

Схема запчастей Case CX135SR - (06-06) - HYDRAULICS - TRACK DRIVE - MODELS WITH DOZER BLADE (06) - POWER TRAIN
10
3
10
9
3
8
10
9
2
11
2
3
2
3
12
3
8
12
11
2
9
12
7
12
1
6
5
4
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

160696A1

HYDRAULIC HOSE,19.00 mm ID x 1680.00 mm

4шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 3

8шт.

3

154503A1

O-RING

1шт.

4

152709A1

HOSE,6.4mm ID x 2100mm L

2шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 6

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

KHJ1178

ELBOW

2шт.

8

150963A1

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

2шт.

9

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 9

2шт.

10

154487A1

O-RING

1шт.

111

150953A1

RUBBER BLOCK

2шт.

12

150071A1

MOUNTING CLIP

4шт.
