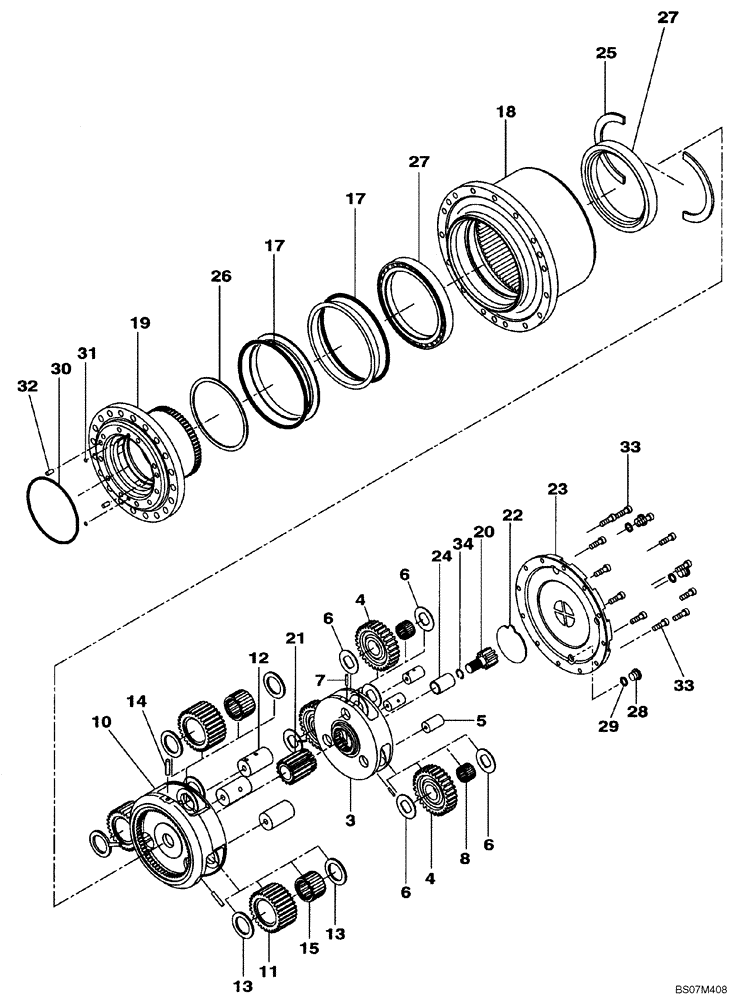

Запчасти Case CX135SR (06-04) - MOTOR ASSY - GEAR ASSY, REDUCTION (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
KNA10520
MOTO-REDUCTION GEAR
Also Includes Parts on Figure 06-02. 06-03
1шт.
KNA10520R
REMAN-MOTO REDUCTION
Reman For New P/N KNA10520
1шт.
KNA10520C
CORE-MOTO-REDUCTION UNIT
Return Number
1шт.
LN002260
REDUCER
REDUCTION GEARS, Incl. Fig. 2 - 34
1шт.
LN002260R
REMAN-REDUCTION UNIT
CX135SR CRAWLER EXCAVATOR TIER 3, REDUCTION GEARS (3/08-)
1шт.
LN002260C
CORE-REDUCTION UNIT
Return Number
1шт.
LN002270
HOUSING
CARRIER, SPL., Incl. Fig. 3 - 8
1шт.
3
NSS
NOT SOLD SEPARAT
CARRIER, SPL.
1шт.
4
NSS
NOT SOLD SEPARAT
GEAR, PLANETARY
3шт.
5
NSS
NOT SOLD SEPARAT
PIN
3шт.
6
NSS
NOT SOLD SEPARAT
WASHER, THRUST
6шт.
7
NSS
NOT SOLD SEPARAT
PIN
3шт.
8
NSS
NOT SOLD SEPARAT
BRG., ROLLER
3шт.
9
LN002280
HOUSING
CARRIER, SPL.
1шт.
10
NSS
NOT SOLD SEPARAT
CARRIER, SPL.
1шт.
11
NSS
NOT SOLD SEPARAT
GEAR, PLANETARY
3шт.
12
NSS
NOT SOLD SEPARAT
PIN
3шт.
13
NSS
NOT SOLD SEPARAT
WASHER, THRUST
6шт.
14
NSS
NOT SOLD SEPARAT
PIN
3шт.
15
NSS
NOT SOLD SEPARAT
BRG., ROLLER
3шт.
16
LE016880
SEAL
SEAL, FLOATING
1шт.
17
NSS
NOT SOLD SEPARAT
SEAL, FLOATING
2шт.
18
LH005370
HUB
HUB
1шт.
19
LR016850
SPINDLE
SPINDDLE
1шт.
20
LC003090
SUN GEAR
GEAR SUN
1шт.
21
LC003100
SUN GEAR
GEAR SUN
1шт.
22
LR016860
RETAINING PLATE
PLATE THRUST
1шт.
23
LW005540
COVER
COVER
1шт.
24
LB012750
COUPLING RING
COUPLING, SPL.
1шт.
25
LA011780
LOCK WASHER
WASHER, LOCK
2шт.
26
LH005380
ADJUSTING PLATE
SHIM, SPL.
1шт.
27
LB012760
BALL BEARING
BEARING, BALL
2шт.
28
165237A1
PLUG
3шт.
30
LBQ5261
O-RING
O-RING
1шт.
31
154451A1
O-RING
2шт.
32
161820A1
COTTER PIN
2шт.
33
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
12шт.
34
370A0220Z
SNAP RING
RING, SNAP
1шт.
LZ009500
REPAIR KIT
UNIT, MOTOR PISTON, Incl. Ref# 39, 40, 41
1шт.
LZ009510
SEAL KIT
MOTOR, Incl. (Fig. 06-04, 16, 17, 29 - 31), (Fig 06-03, 56 - 58), (Fig 06-02, 74 - 79, 89, 95, 100, 101, 110)
1шт.
Выбрано товаров: 41
