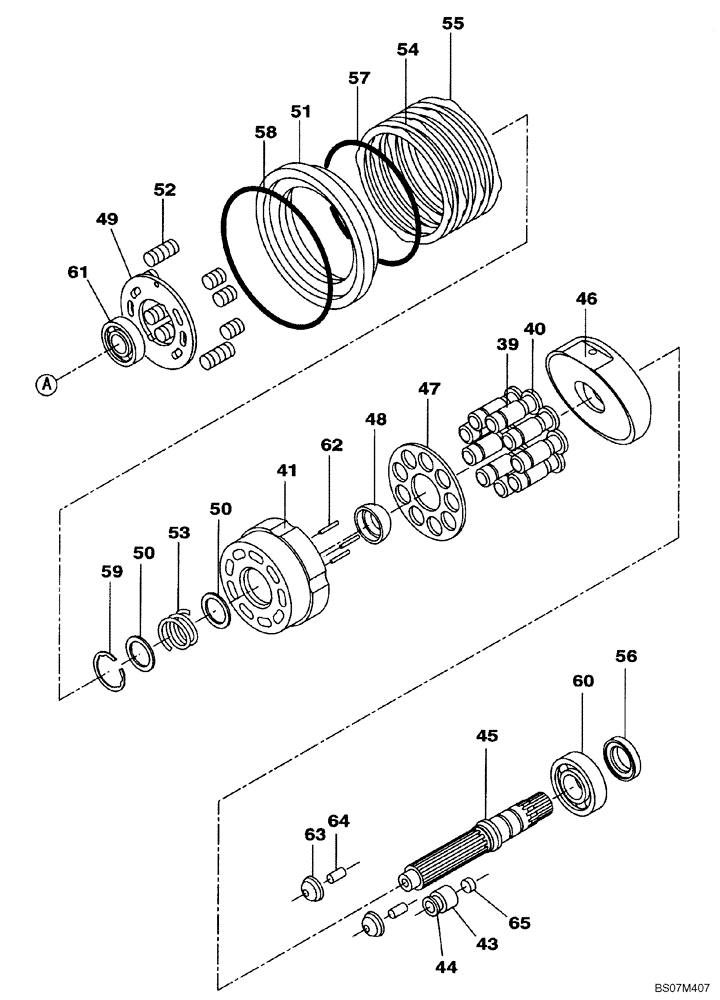

Запчасти Case CX135SR (06-03) - MOTOR ASSY - TRACK DRIVE (06) - POWER TRAIN

KNA10520

MOTO-REDUCTION GEAR

Also Includes Parts on Figure 06-02. 06-04

1шт.

KNA10520R

REMAN-MOTO REDUCTION

Reman For New P/N KNA10520

1шт.

KNA10520C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

39

NSS

NOT SOLD SEPARAT

PISTON

9шт.

40

NSS

NOT SOLD SEPARAT

SHOE

9шт.

41

NSS

NOT SOLD SEPARAT

BLOCK, CYLINDER

1шт.

LJ015930

PISTON

PISTON, Incl. Fig. 43, 44

1шт.

43

NSS

NOT SOLD SEPARAT

PISTON

1шт.

44

NSS

NOT SOLD SEPARAT

SHOE

1шт.

45

LB012770

SHAFT

SHAFT

1шт.

46

LR016870

PLATE

PLATE, SWASH

1шт.

47

LR016880

PLATE

PLATE, SPL.

1шт.

48

LB012780

BALL

BALL, THRUST

1шт.

49

LR016890

PLATE

PLATE, TIMING

1шт.

50

165289A1

WASHER

2шт.

51

LJ015940

PISTON

PISTON

1шт.

52

LG00449

SPRING

10шт.

53

LG006470

SPRING

SPRING, SPL.

1шт.

54

LR016900

PLATE

PLATE, SPL.

3шт.

55

LR016910

PLATE

PLATE, SPL.

4шт.

56

LE016890

OIL SEAL

SEAT OIL

1шт.

57

LE01035

O-RING

1шт.

58

LE016900

O-RING

O-RING

1шт.

59

165221A1

RING, SNAP

RING SNAP

1шт.

60

LB012790

BALL BEARING

BEARING, BALL

1шт.

61

LB012800

BALL BEARING

BEARING, BALL

1шт.

62

LB012810

NEEDLE BEARING

BEARING, NEEDLE

3шт.

63

LB012820

PIVOT

PIVOT

2шт.

64

161820A1

COTTER PIN

2шт.

65

LG006480

SPRING

SPRING, SPL.

1шт.

LZ009500

REPAIR KIT

MOTOR PISTON, Incl. Ref# 39, 40, 41

1шт.

LZ009510

SEAL KIT

MOTOR, Incl. (Fig. 06-04, 16, 17, 29 - 31), (Fig 06-03, 56 - 58), (Fig 06-02, 74 - 79, 89, 95, 100, 101, 110)

1шт.
