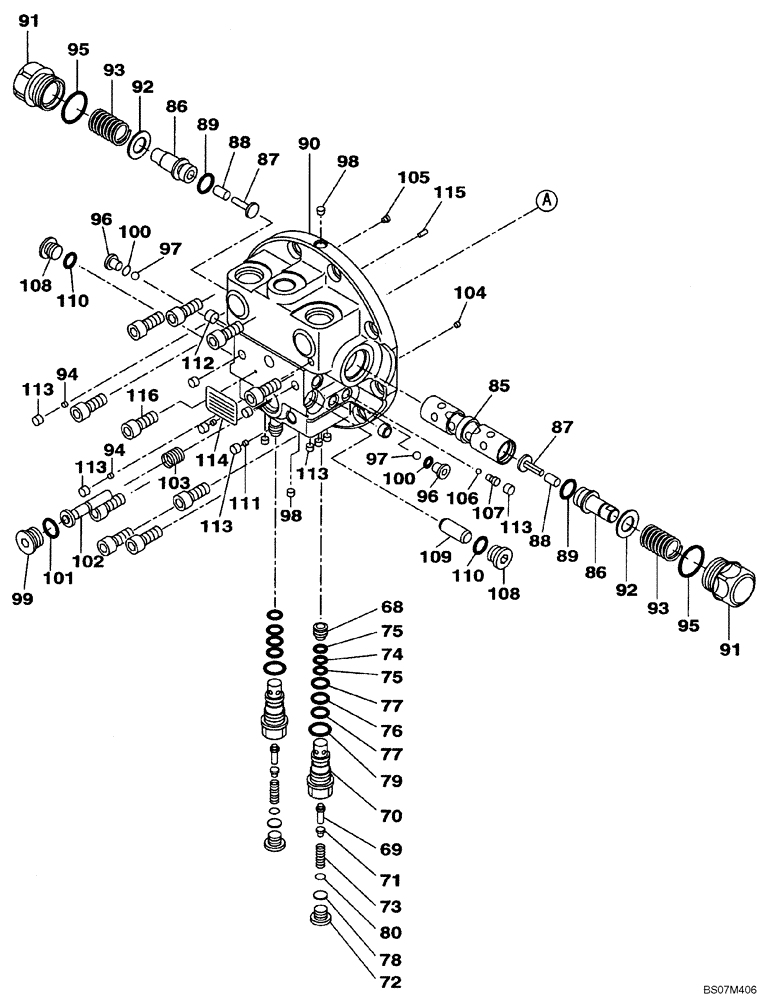

Запчасти Case CX135SR (06-02) - MOTOR ASSY - PISTON (06) - POWER TRAIN

KNA10520

MOTO-REDUCTION GEAR

Also Includes Parts on Figure 06-03. 06-04

1шт.

KNA10520R

REMAN-MOTO REDUCTION

Reman For New P/N KNA10520

1шт.

KNA10520C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

LJ015970

HYDRAULIC VALVE

VALVE RELEIF, Incl. Fig. 68 - 116

1шт.

LJ015950

HYDRAULIC VALVE

VALVE RELEIF, Incl. Fig. 68 - 80

2шт.

68

NSS

NOT SOLD SEPARAT

SEAT

2шт.

69

NSS

NOT SOLD SEPARAT

VALVE, SPL

2шт.

70

NSS

NOT SOLD SEPARAT

SLEEVE

2шт.

71

NSS

NOT SOLD SEPARAT

COLLAR

2шт.

72

NSS

NOT SOLD SEPARAT

PLUG

2шт.

73

NSS

NOT SOLD SEPARAT

SPRING, SPL.

2шт.

74

155086A1

O-RING

2шт.

75

154420A1

RING

4шт.

76

154475A1

O-RING

2шт.

77

153961A1

BACK-UP RING

4шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

79

154487A1

O-RING

2шт.

80

NSS

NOT SOLD SEPARAT

SHIM

2шт.

LJ015970

HYDRAULIC VALVE

VAKLVE CONTROL, Incl. Fig. 85 - 116

1шт.

85

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

86

NSS

NOT SOLD SEPARAT

PLUG

2шт.

87

NSS

NOT SOLD SEPARAT

VALVE, SPL.

2шт.

88

NSS

NOT SOLD SEPARAT

SPRING, SPL.

2шт.

89

154487A1

O-RING

2шт.

90

NSS

NOT SOLD SEPARAT

FLANGE, SPL.

1шт.

91

LK005910

PLUG

PLUG

2шт.

92

LA011790

WASHER

WASHER

2шт.

93

LG006490

SPRING

SPRING, SPL.

2шт.

94

LJ015990

ORIFICE

ORIFICE

2шт.

95

154539A1

O-RING

2шт.

96

LK005920

PLUG

PLUG

2шт.

97

167030A1

BALL

2шт.

98

LK00296

PLUG

5шт.

99

165237A1

PLUG

1шт.

100

154455A1

O-RING

2шт.

101

154487A1

O-RING

1шт.

102

LJ016000

SPOOL

SPOOL

1шт.

103

LG006500

SPRING

SPRING, SPL.

1шт.

104

LJ016010

ORIFICE

ORIFICE

1шт.

105

LJ016020

FILTER SCREEN

FILTER, SPL.

1шт.

106

LB00859

BALL

1шт.

107

LK005930

PLUG

PLUG

1шт.

108

LK005940

PLUG

PLUG

2шт.

109

LJ016030

PISTON

PISTON

1шт.

110

154475A1

O-RING

2шт.

111

LJ016010

ORIFICE

ORIFICE

2шт.

112

LK005950

PLUG

PLUG

2шт.

113

LK00298

PLUG

8шт.

114

161835A1

TYPE PLATE

1шт.

115

335B040T010

COTTER PIN

1шт.

116

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

10шт.

LZ009510

SEAL KIT

MOTOR, Incl. (Fig. 06-04, 16, 17, 29 - 31), (Fig 06-03, 56 - 58), (Fig 06-02, 74 - 79, 89, 95, 100, 101, 110)

1шт.

LZ009500

REPAIR KIT

MOTOR PISTON, Incl Ref# 39, 40, 41

1шт.
