(04-02) - HARNESS, MAIN - RELAY PANEL

Запчасти Case CX135SR (04-02) - HARNESS, MAIN - RELAY PANEL (04) - ELECTRICAL SYSTEMS

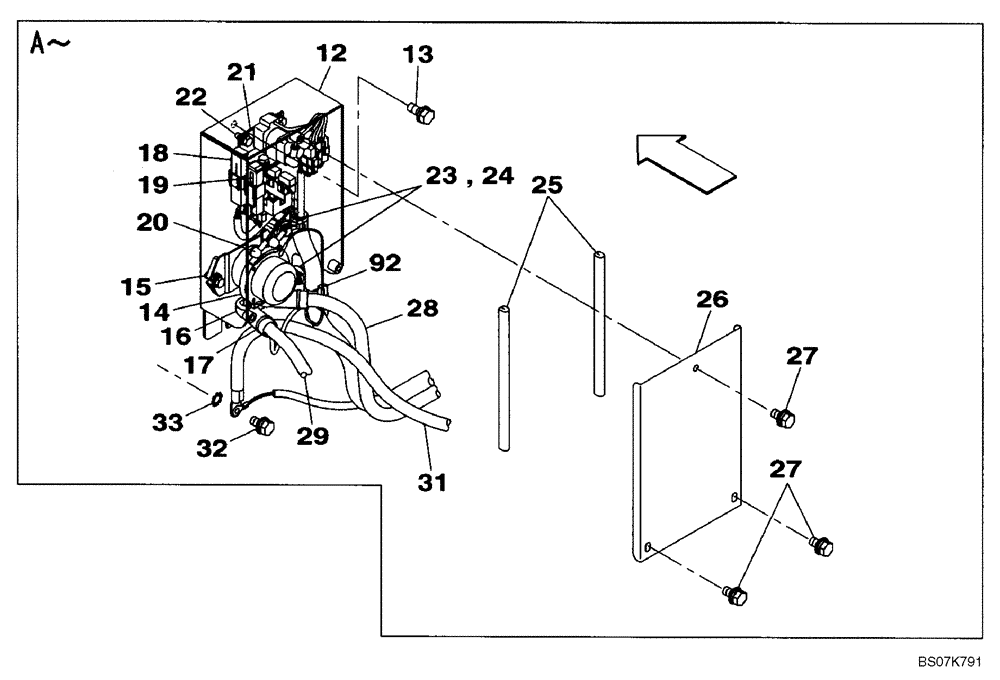

Схема запчастей Case CX135SR - (04-02) - HARNESS, MAIN - RELAY PANEL (04) - ELECTRICAL SYSTEMS
25
24
33
27
26
32
12
29
15
23
19
22
13
17
27
28
16
21
20
14
31
18
92
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

12

KMR10500

SUPPORT

BRACKET

1шт.

12.5

KMR11000

BRACKET

BRACKET, Not Shown

1шт.

13

166052A1

BOLT

M10X25

3шт.

14

159897A1

RELAY

1шт.

15

KHJ1215

BOLT,Spcl

M8X25

2шт.

16

162212A1

TERMINAL CONNECTOR

2шт.

17

150067A1

MOUNTING CLIP

2шт.

18

159902A1

FUSE

65A fuse - starter

1шт.

19

KHR3850

FUSE

1шт.

20

159171A1

CAP

2шт.

21

KMR10340

SUPPORT

BRACKET

1шт.

22

167320A1

BOLT,Spcl, M8 x 20mm

M8X20

4шт.

23

KHR2584

CLAMP

2шт.

24

KHJ1215

BOLT,Spcl

M8X25

2шт.

25

MPN5007

SEAL PROTECTION

CUSHION, RUBBER

2шт.

26

KMR10520

COVER

COVER

1шт.

27

167518A1

BOLT

M8X16

3шт.

27.2

167518A1

BOLT

Not Shown

7шт.

27.4

KMR10990

BRACKET

BRACKET, Not Shown

1шт.

27.6

KMR11150

BRACKET

BRACKET, Not Shown

1шт.

28

KHR19660

ELECTRIC CABLE

CABLE, BATTERY

1шт.

29

KHR12170

POS BATTERY CABLE

Battery L=520mm

1шт.

31

KHR12090

ELECTRIC CABLE

1шт.

32

167518A1

BOLT

M8X16

1шт.

33

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

92

150496A1

MOUNTING CLIP

4шт.
