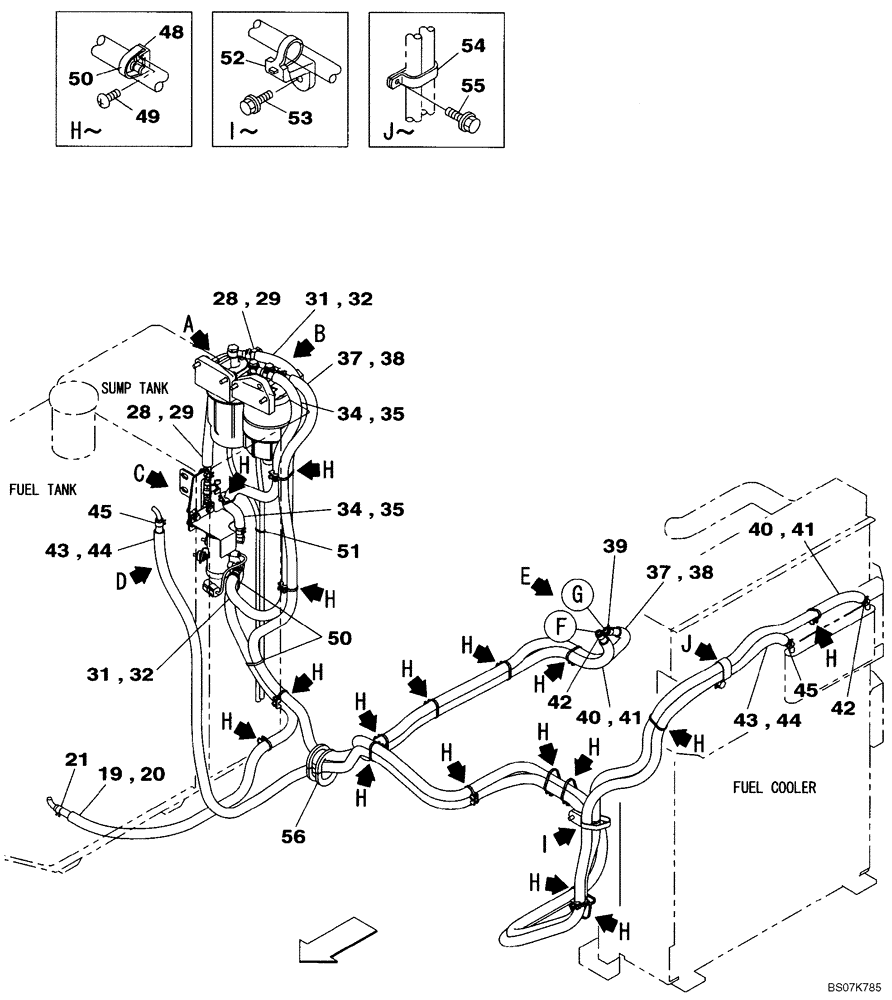

Запчасти Case CX135SR (03-02[01]) - FUEL LINES - HOSES (03) - FUEL SYSTEM

19

KHH12130

FUEL HOSE

Rubber

1шт.

20

158063A1

PLASTIC-RUBBER TUBE

1шт.

21

KHH0405

MOUNTING CLIP

2шт.

28

KHH12890

FUEL HOSE

Rubber Replaces KHH12140

1шт.

29

158060A1

PLASTIC-RUBBER TUBE

1шт.

31

KHH11980

FUEL HOSE

Rubber

1шт.

32

150774A1

PLASTIC-RUBBER TUBE

1шт.

34

KHH12150

FUEL HOSE,800.00 mm

Rubber

1шт.

35

KHR13370

PLASTIC-RUBBER TUBE

1шт.

37

NSS

NOT SOLD SEPARAT

HOSE, RUBBER

1шт.

38

158067A1

PLASTIC-RUBBER TUBE

1шт.

39

KHH0405

MOUNTING CLIP

2шт.

40

KHH12270

FUEL HOSE

Rubber

1шт.

41

KHR13940

PLASTIC-RUBBER TUBE

1шт.

42

KHH0405

MOUNTING CLIP

2шт.

43

KHH11820

FUEL HOSE,4100.00 mm

Rubber

1шт.

44

KHR17670

PLASTIC-RUBBER TUBE

TUBE, CORRUGATED

1шт.

45

KHH0405

MOUNTING CLIP

2шт.

48

150860A1

COLLAR

17шт.

49

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

17шт.

50

150496A1

MOUNTING CLIP

19шт.

51

150067A1

MOUNTING CLIP

1шт.

52

KHR2581

CLAMP

1шт.

53

KHJ1215

BOLT,Spcl

M8X25

1шт.

54

152762A1

CLAMP

1шт.

55

166052A1

BOLT

M10X25

1шт.

56

KMJ3056

GASKET

1шт.
