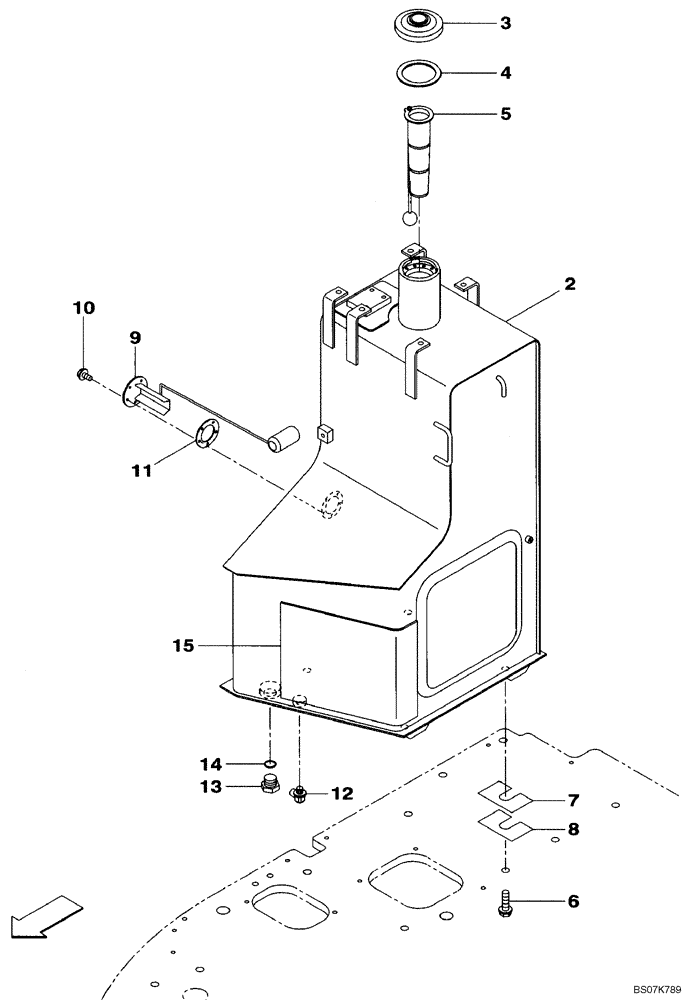

Запчасти Case CX135SR (03-01) - FUEL TANK (03) - FUEL SYSTEM

1

KMH10650

FUEL TANK

Incl. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Tank, Fuel

1шт.

3

150492A1

LOCKABLE FUEL CAP

Incl. 4

1шт.

4

163804A1

GASKET

1шт.

5

KHH0500

FILTER

1шт.

6

165930A1

BOLT,Sems, M16 x 55mm

4шт.

7

150166A1

SHIM

0,80 mm (0,032 in)

4шт.

8

150479A1

SHIM

2,00 mm (0,079 in)

4шт.

9

KHR3279

SENSOR

1шт.

10

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

5шт.

11

152591A1

GASKET,2mm Thk

1шт.

12

KMH0818

SHUT-OFF VALVE

1шт.

13

152924A1

PLUG

Incl. 15

1шт.

14

154503A1

O-RING

1шт.

15

KMH0817

RUBBER PAD

1шт.
