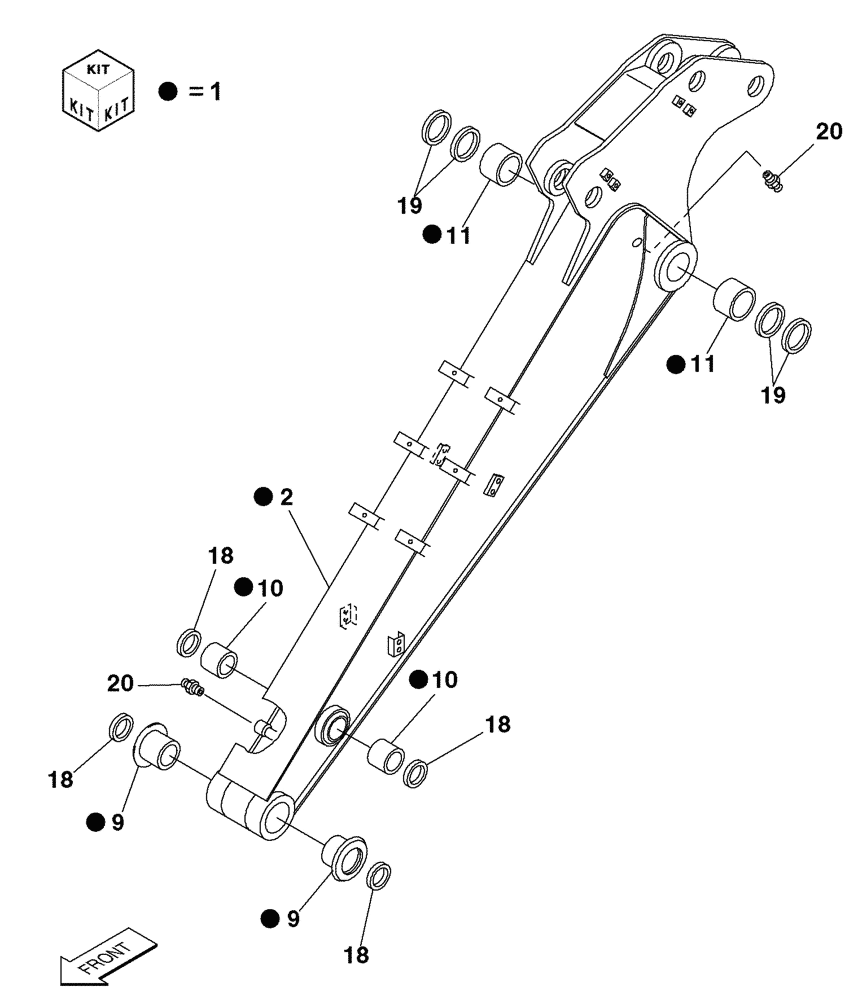

Запчасти Case CX135SR (09-63) - DIPPER (2.10M) - OFFSET BACKHOE BOOM (09) - CHASSIS/ATTACHMENTS

1

KMV2797

DIPPER

Include(s) 2, 9 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

9

KNV1268

BUSHING

2шт.

10

150128A1

BUSHING,65mm ID x 80mm OD x 50mm L

2шт.

11

KNV1144

SELF LUB RING

2шт.

18

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

4шт.

19

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

4шт.

20

153630A1

LUBE NIPPLE

2шт.
