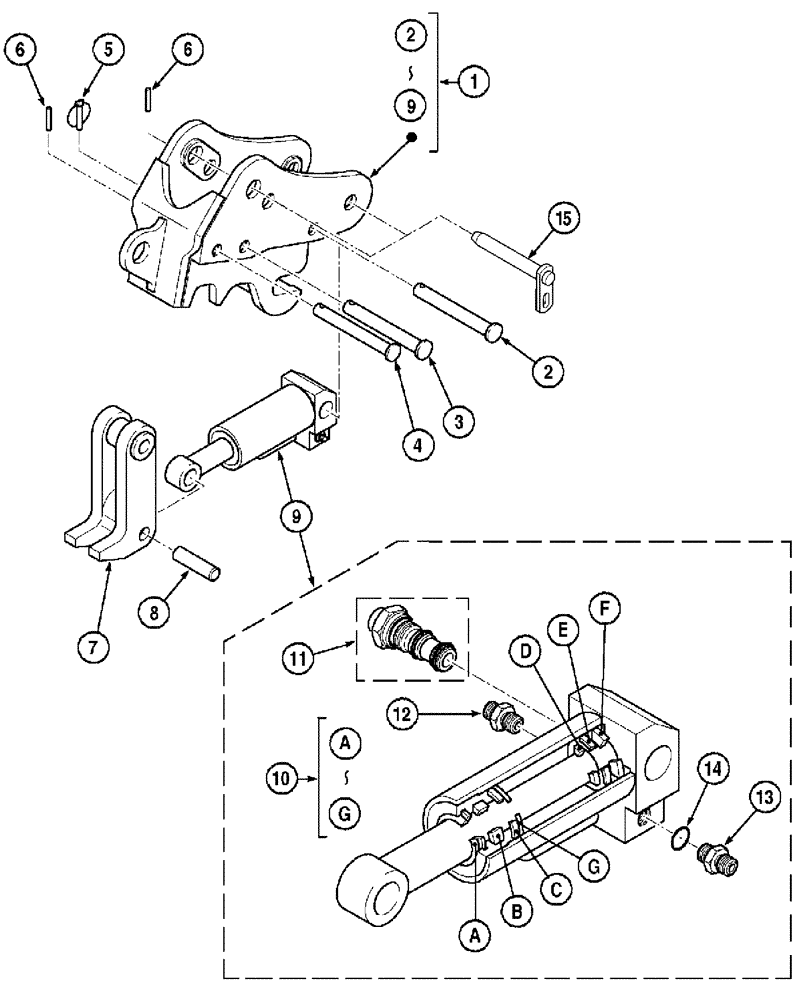

Запчасти Case CX135SR (09-58) - HYDRAULIC QUICK COUPLER - MIX / MATCH (09) - CHASSIS/ATTACHMENTS

1

408078A1

QUICK MALE COUPLING

1шт.

Consists Of Ref. Numbers 2 To 14

1шт.

2

NSS

NOT SOLD SEPARAT

dia 32, Pin

1шт.

3

NSS

NOT SOLD SEPARAT

dia 40, Pin

1шт.

4

NSS

NOT SOLD SEPARAT

dia 40, Pin

1шт.

5

NSS

NOT SOLD SEPARAT

Pin, Split

1шт.

6

NSS

NOT SOLD SEPARAT

dia 8, Pin, Split

2шт.

7

NSS

NOT SOLD SEPARAT

Hook

1шт.

8

NSS

NOT SOLD SEPARAT

dia 32, Pin

1шт.

9

NSS

NOT SOLD SEPARAT

Cylinder Assy

1шт.

10

NSS

NOT SOLD SEPARAT

Package, Seals

1шт.

11

NSS

NOT SOLD SEPARAT

Valve, Press. Relief

1шт.

12

NSS

NOT SOLD SEPARAT

7/16, Union

1шт.

13

NSS

NOT SOLD SEPARAT

1/4, Union

1шт.

14

NSS

NOT SOLD SEPARAT

1/4, Seal

1шт.

15

K3430942

PIN,60mm OD x 416mm L

dia 60

2шт.
