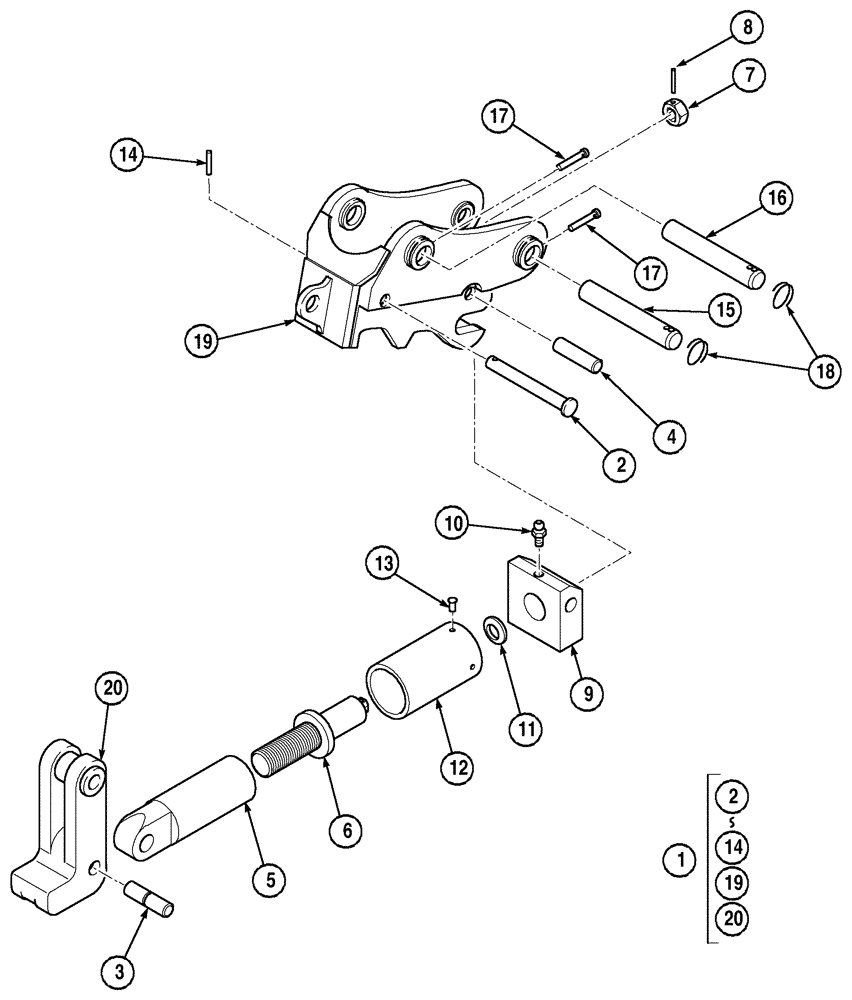

Запчасти Case CX135SR (09-57) - MANUAL QUICK CHANGE COUPLER - MIX / MATCH (09) - CHASSIS/ATTACHMENTS

1

408076A1

QUICK MALE COUPLING

1шт.

Consists Of Ref. Numbers 2 To 14, 19, 20

1шт.

2

NSS

NOT SOLD SEPARAT

Pin

1шт.

3

NSS

NOT SOLD SEPARAT

Pin

1шт.

4

NSS

NOT SOLD SEPARAT

Pin

1шт.

5

NSS

NOT SOLD SEPARAT

Tensioner

1шт.

6

NSS

NOT SOLD SEPARAT

Setscrew

1шт.

7

NSS

NOT SOLD SEPARAT

Nut

1шт.

8

NSS

NOT SOLD SEPARAT

dia 8, Pin, Split

1шт.

9

NSS

NOT SOLD SEPARAT

Block

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Grease

1шт.

11

NSS

NOT SOLD SEPARAT

Washer, Belleville

1шт.

12

NSS

NOT SOLD SEPARAT

Guard

1шт.

13

NSS

NOT SOLD SEPARAT

Rivet

4шт.

14

NSS

NOT SOLD SEPARAT

dia 12, Pin, Split

1шт.

15

K3430942

PIN,60mm OD x 416mm L

dia 60

1шт.

16

K3430942

PIN,60mm OD x 416mm L

dia 60

1шт.

17

NSS

NOT SOLD SEPARAT

Pin, Split

2шт.

18

NSS

NOT SOLD SEPARAT

Ring, Snap

2шт.

19

NSS

NOT SOLD SEPARAT

Frame

1шт.

20

NSS

NOT SOLD SEPARAT

Hook

1шт.
