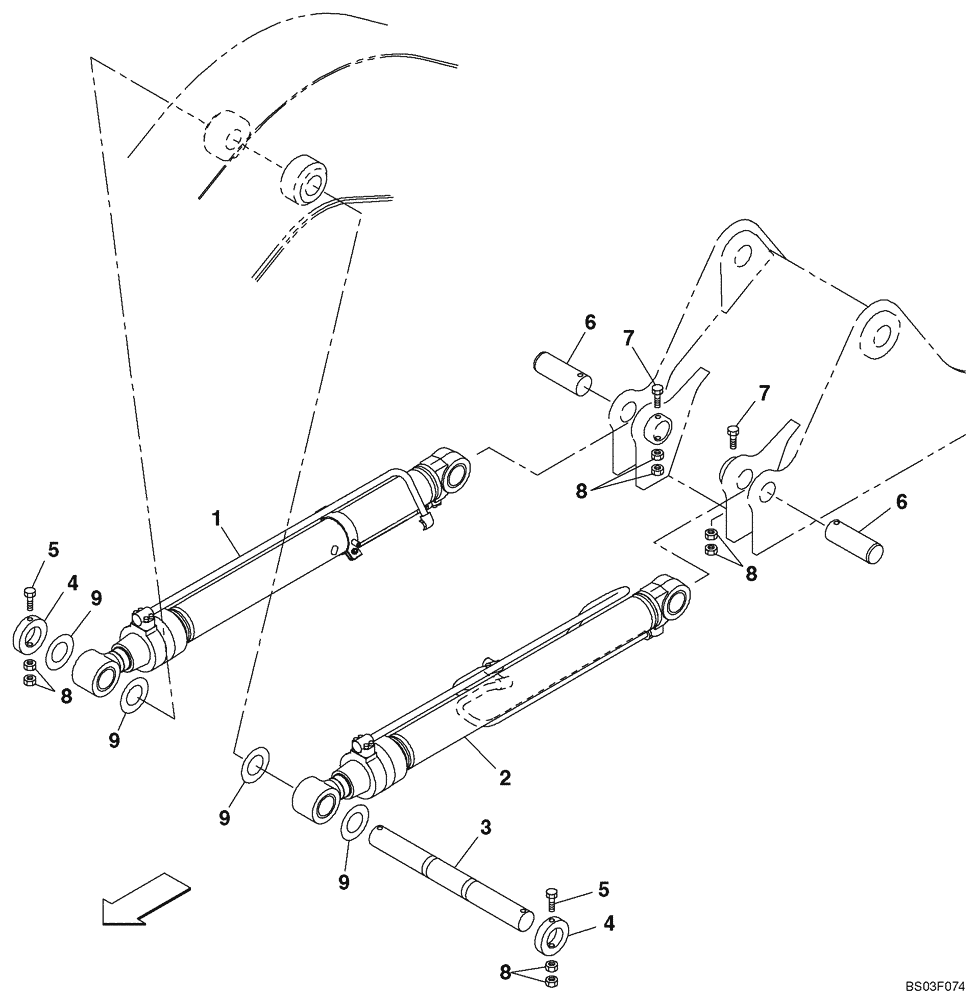

Запчасти Case CX135SR (09-51) - BOOM CYLINDER, MOUNTING (09) - CHASSIS/ATTACHMENTS

1

KMV13960

HYDRAULIC CYLINDER

Boom, Right-Hand, Models Without Load Hold; See Figure 08-78

1шт.

1

KMV13960R

REMAN-HYD CYLINDER

CX135SR CRAWLER EXCAVATOR TIER 3, Boom, Right-Hand (3/08-)

1шт.

1

KMV13960C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HYDRAULIC CYLINDER, Boom, Right-Hand, Models With Load Hold; See Figure 08-70

1шт.

2

KMV13970

HYDRAULIC CYLINDER

Boom, Left-Hand, Models Without Load Hold; See Figure 08-79

1шт.

2

KMV13970R

REMAN-HYD CYLINDER

CX135SR CRAWLER EXCAVATOR TIER 3, Boom, Left-Hand, Models Without Load Hold (3/08-)

1шт.

2

KMV13970C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

HYDRAULIC CYLINDER, Boom, Left-Hand, Models With Load Hold; See Figure 08-71

1шт.

3

KNV1266

PIN

1шт.

4

KNV1247

RING, LOCKING

RING, LOCK

2шт.

5

514-1038

BOLT,Hex, M16 x 1.5 x 160mm, Cl 10.9

2шт.

6

KNV1267

PIN

2шт.

7

514-1111

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

2шт.

8

829-13416

NUT,M16 x 1.5, Cl 10

8шт.

9

160745A1

ADJUSTING PLATE

4шт.
