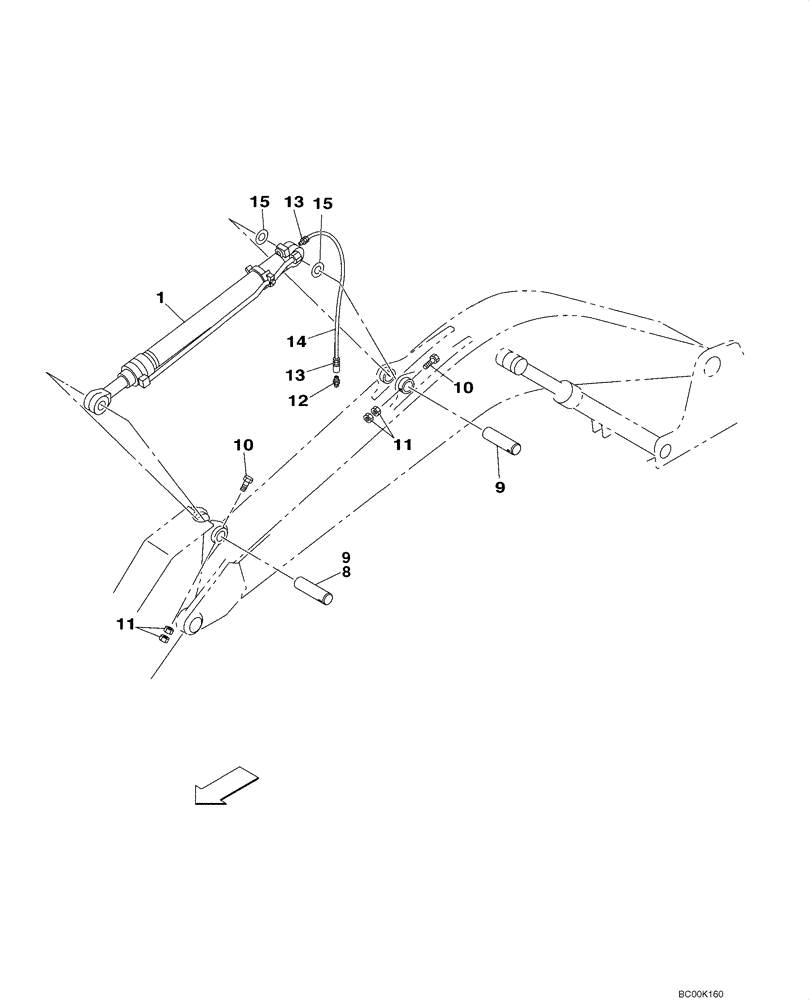

Запчасти Case CX135SR (09-50) - ARM CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

1

KNV1617

HYDRAULIC CYLINDER

Arm, Models Without Load Hold, See Figure 08-75

1шт.

1

KNV1617R

REMAN-HYD CYLINDER

CX135SR CRAWLER EXCAVATOR TIER 3, Arm, Models Without Load Hold (3/08-)

1шт.

1

KNV1617C

CORE-HYD CYLINDER

Return Number

1шт.

1

KNV1621

HYDRAULIC CYLINDER

Arm, Models With Load Hold, See Figure 08-73

1шт.

1

KNV1621R

REMAN-HYD CYLINDER

CX135SR CRAWLER EXCAVATOR TIER 3, Arm, Models With Load Hold (3/08-)

1шт.

1

KNV1621C

CORE-HYD CYLINDER

Return Number

1шт.

8

KNV1598

HITCH PIN

Models With 3,00 Meter (118-1/8 Inch) Arm

1шт.

9

150101A1

PIN

1-2шт.

10

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

2шт.

11

829-13416

NUT,M16 x 1.5, Cl 10

4шт.

12

153630A1

LUBE NIPPLE

1шт.

13

150190A1

FITTING

2шт.

14

152549A1

TUBE,4.32 mm ID, 6.35 mm OD

1шт.

15

160735A1

ADJUSTING PLATE

2шт.
