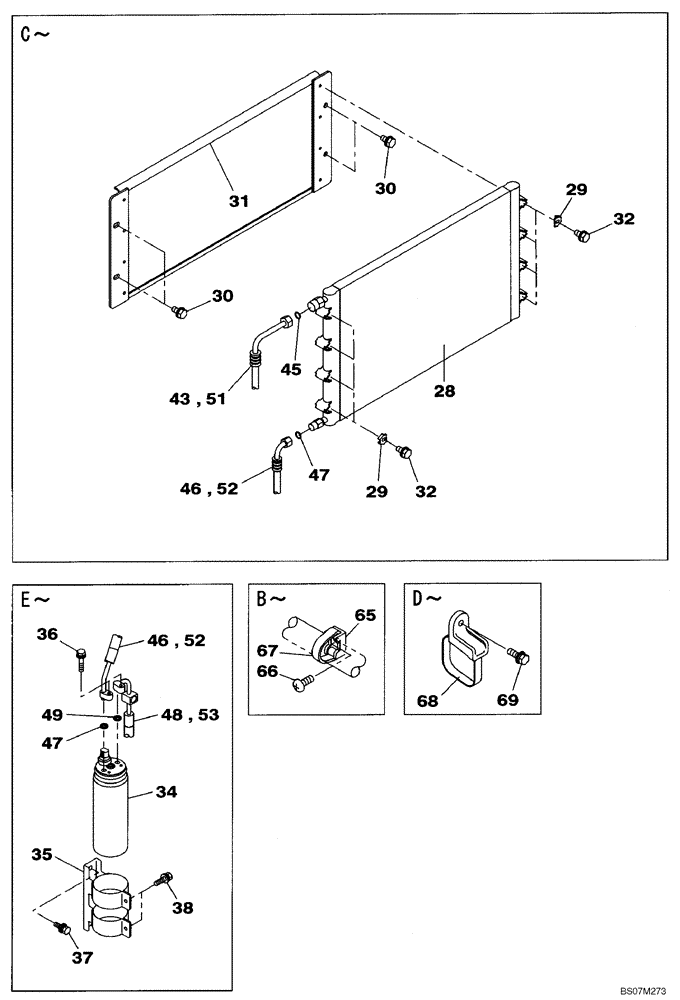

Запчасти Case CX135SR (09-44) - AIR CONDITIONING SYSTEM - CONDENSER (09) - CHASSIS/ATTACHMENTS

28

KHR2592

CONDENSER

1шт.

29

KHR2593

BRACKET

8шт.

30

166350A1

BOLT

M8X20

4шт.

31

KMR10490

BRACKET

1шт.

32

162059A1

BOLT,M6 x 45mm

8шт.

34

KHR3751

RECEIVER-DRYER

(includes high/low press switch)

1шт.

35

159635A1

SUPPORT

1шт.

36

162043A1

BOLT,Spcl, M6

M6X28

2шт.

37

166350A1

BOLT

M8X20

2шт.

38

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

M6X20

2шт.

43

KHR17440

HOSE

1шт.

44

KHR3053

CAP

1шт.

45

169053A1

O-RING

1шт.

46

KHR17450

HOSE

1шт.

47

169054A1

O-RING

1шт.

48

KHR17460

HOSE

1шт.

49

169054A1

O-RING

1шт.

51

KHR11730

FLEXIBLE SHEATH

1шт.

52

150770A1

PLASTIC-RUBBER TUBE

1шт.

53

KRH1456

PLASTIC-RUBBER TUBE

1шт.

65

150860A1

COLLAR

3шт.

66

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

67

150496A1

MOUNTING CLIP

4шт.

68

KHR2581

CLAMP

3шт.

69

KHJ1215

BOLT,Spcl

3шт.
