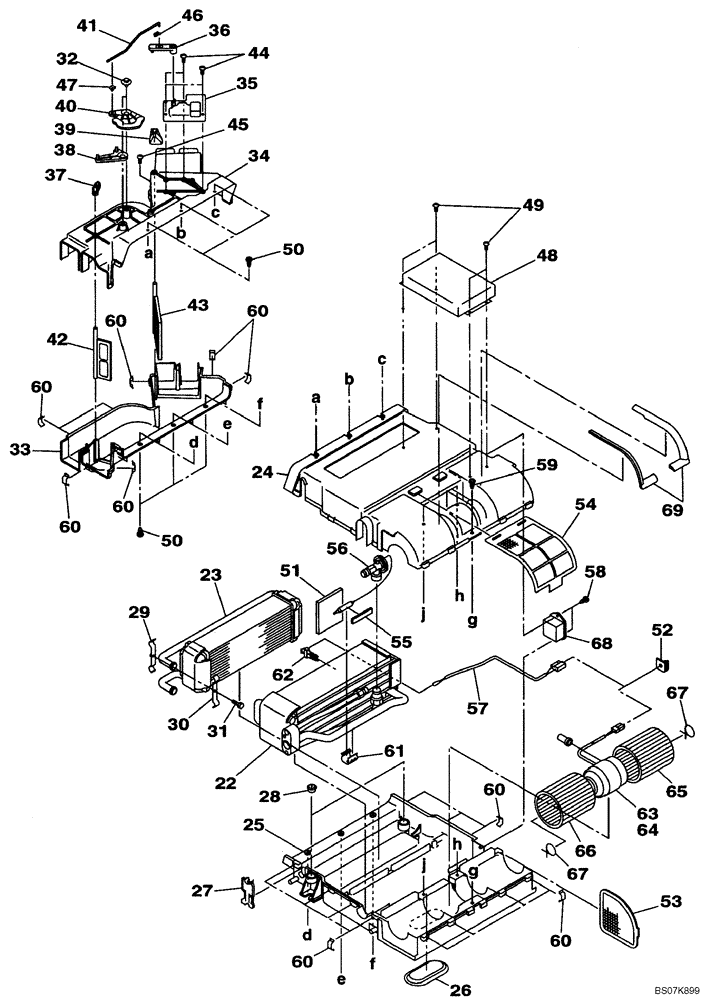

Запчасти Case CX135SR (09-28) - HEATER - AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

22

KHR3752

COOLER

1шт.

23

KHR3753

RADIATOR, HEATER

1шт.

24

KHR3754

CASE

1шт.

25

KHR3755

CASE

1шт.

26

KHR3756

GROMMET

1шт.

27

KHR3757

GROMMET

1шт.

28

KHR3758

PLUG

2шт.

29

KHR3759

RETAINER

1шт.

30

KHR3760

RETAINER

1шт.

31

KHR3780

BOLT,Spcl

M5X12

1шт.

32

KHR2862

SELF-TAP SCREW

M5X12

2шт.

33

KHR3763

CASE

1шт.

34

KHR3764

CASE

1шт.

35

KHR3785

ELECTRIC MOTOR

1шт.

36

KHR3766

LEVER

1шт.

37

KHR3767

LEVER

1шт.

38

KHR3768

LEVER

1шт.

39

KHR3769

LINK

1шт.

40

KHR3770

LINK

1шт.

41

KHR3771

ROD

1шт.

42

KHR3772

DAMPER

1шт.

43

KHR3773

DAMPER

1шт.

44

KHR3778

SCREW,Pan

M4X22

4шт.

45

KHR3779

SCREW,Pan

M5X16

1шт.

46

KHR3774

CLAMP

1шт.

47

KHR3775

HOLDER

1шт.

48

KHR11720

ECU

1шт.

49

KHR11680

SCREW,M4 x 12mm

M4X12

4шт.

50

KHR3776

SELF-TAP SCREW

M4X10

6шт.

51

KHR3986

FOAM INSULATION

1шт.

52

KHR3987

GROMMET

1шт.

53

KHR10690

FILTER

1шт.

54

KHR3989

SCREEN

1шт.

55

KHR3990

SUPPORT

1шт.

56

KHR3992

VALVE

1шт.

57

KHR3993

THERMOMETER

1шт.

58

KHR3994

SCREW

2шт.

59

KHR3995

BOLT,Spcl

3шт.

60

KHR3996

CLAMP

18шт.

61

KHR3997

STAY

1шт.

62

KHR3998

HOLDER

1шт.

63

KHR18640

ELECTRIC MOTOR

1шт.

63

KHR18640R

REMAN-BLOWER

CX135SR CRAWLER EXCAVATOR TIER 3 (3/08-)

1шт.

63

KHR18640C

CORE-BLOWER

Return Number

1шт.

64

KHR18730

SMALL ELECTRIC MOTOR

1шт.

64

KHR18640R

REMAN-BLOWER

CX135SR CRAWLER EXCAVATOR TIER 3 (3/08-), Reman for New PN KHR18730

1шт.

64

KHR18640C

CORE-BLOWER

Return Number

1шт.

65

KHR4021

BLOWER

1шт.

66

KHR4022

BLOWER

1шт.

67

KHR4023

CLIP

2шт.

68

KHR4000

RESISTOR

1шт.

69

KHR10680

SEAL PROTECTION

Packing

1шт.
