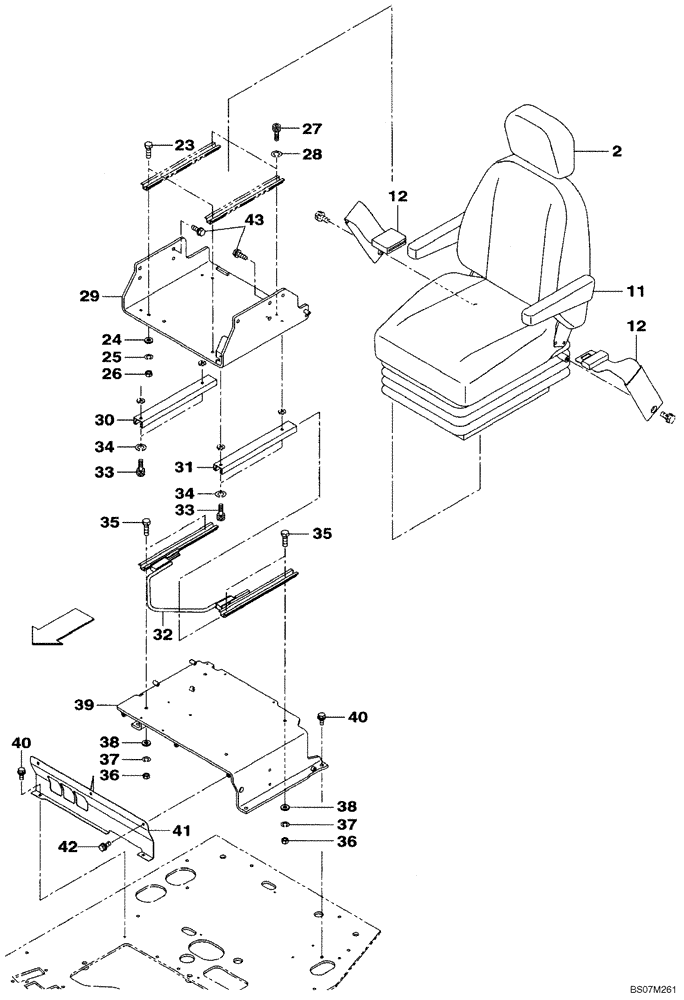

Запчасти Case CX135SR (09-16) - SEAT, MOUNTING - SEAT BELTS (09) - CHASSIS/ATTACHMENTS

2

87350977

SEAT HEADREST

1шт.

11

KHN3250

ARMREST

Kit Includes Left and Right Hand Armrest with Hardware

1шт.

12

KHN3246

SAFETY BELT

1шт.

23

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

25

183-108VR

SPRING WASHER

2шт.

26

162R008SR

SPRING WASHER

2шт.

27

108R008Y020R

HEX SOC SCREW

M8X20

2шт.

28

892-11008

LOCK WASHER,8mm ID

2шт.

29

KHN3549

HOLDER

1шт.

30

KHN3158

SLIDE GUIDE

1шт.

31

KHN3162

SLIDE GUIDE

1шт.

32

KHN3309

LEVER

1шт.

33

108R008Y020R

HEX SOC SCREW

M8X20

4шт.

34

892-11008

LOCK WASHER,8mm ID

4шт.

35

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

36

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

37

183-108VR

SPRING WASHER

4шт.

38

153081A1

WASHER

4шт.

39

KHN3454

BRACKET

1шт.

40

166351A1

BOLT,Sems, M10 x 20mm

M10X20

4шт.

41

KHN19600

COVER

1шт.

42

KHN2132

BOLT,Hex Flg Hd, M6 x 16

5шт.

43

166347A1

BOLT,Sems, M10 x 30mm

M10X30

8шт.
