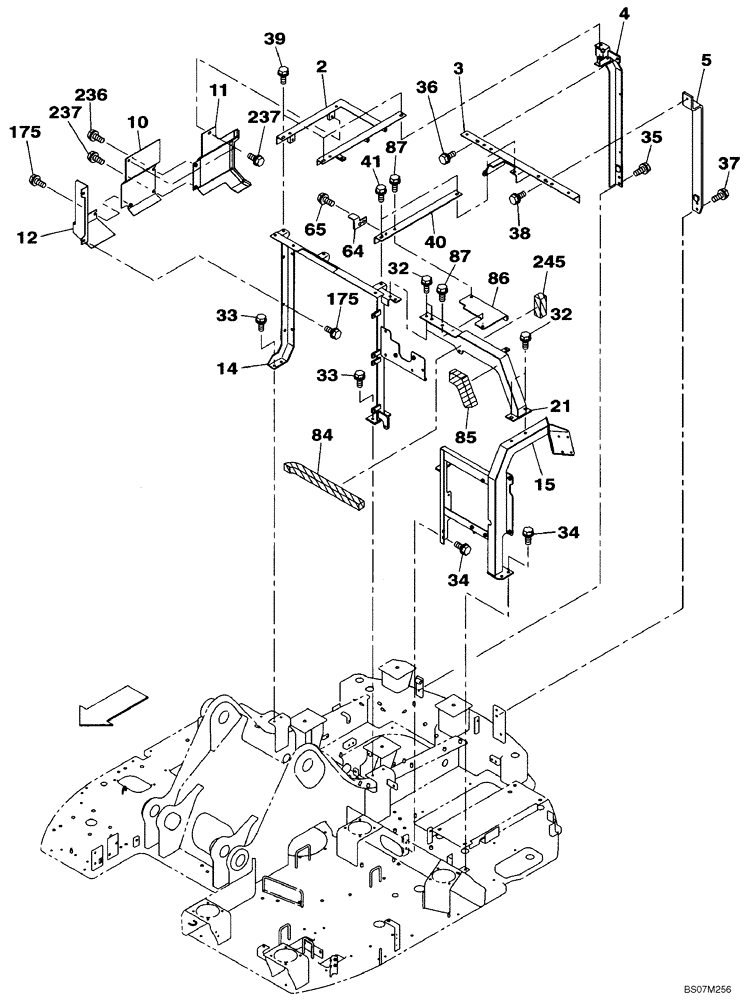

Запчасти Case CX135SR (09-11) - FRAMES, COVERS (09) - CHASSIS/ATTACHMENTS

2

KMN11530

SUPPORT ASSY.

1шт.

3

KMN11460

SUPPORT ASSY.

1шт.

4

KMN11840

SUPPORT ASSY.

1шт.

5

KMN11850

SUPPORT ASSY.

1шт.

10

KMN11660

COVER

1шт.

11

KMN11650

COVER

1шт.

12

KMN11670

COVER

1шт.

14

KMN11470

SUPPORT ASSY.

1шт.

15

KMN11700

SUPPORT ASSY.

1шт.

21

KMN11500

COVER

1шт.

32

166052A1

BOLT

M10X25

4шт.

33

166052A1

BOLT

M10X25

4шт.

34

166052A1

BOLT

M10X25

4шт.

35

166347A1

BOLT,Sems, M10 x 30mm

Replaces 166052A1

2шт.

36

166351A1

BOLT,Sems, M10 x 20mm

M10X20

1шт.

37

166347A1

BOLT,Sems, M10 x 30mm

M10X30

2шт.

38

166351A1

BOLT,Sems, M10 x 20mm

Replaces 166052A1

1шт.

39

166052A1

BOLT

M10X25

3шт.

40

KMN11440

SUPPORT ASSY.

1шт.

41

166052A1

BOLT

M10X25

2шт.

64

KMN11540

SUPPORT

1шт.

65

166052A1

BOLT

M10X25

2шт.

84

KMN11740

SEAL PROTECTION

1шт.

85

KMN11960

SEAL PROTECTION

1шт.

86

KMN11430

COVER

1шт.

87

166052A1

BOLT

M10X25

2шт.

175

166052A1

BOLT

M10X25

3шт.

236

166052A1

BOLT

M10X25

3шт.

237

166052A1

BOLT

M10X25

3шт.

245

KMN11270

NOISE PROTECTION

1шт.
