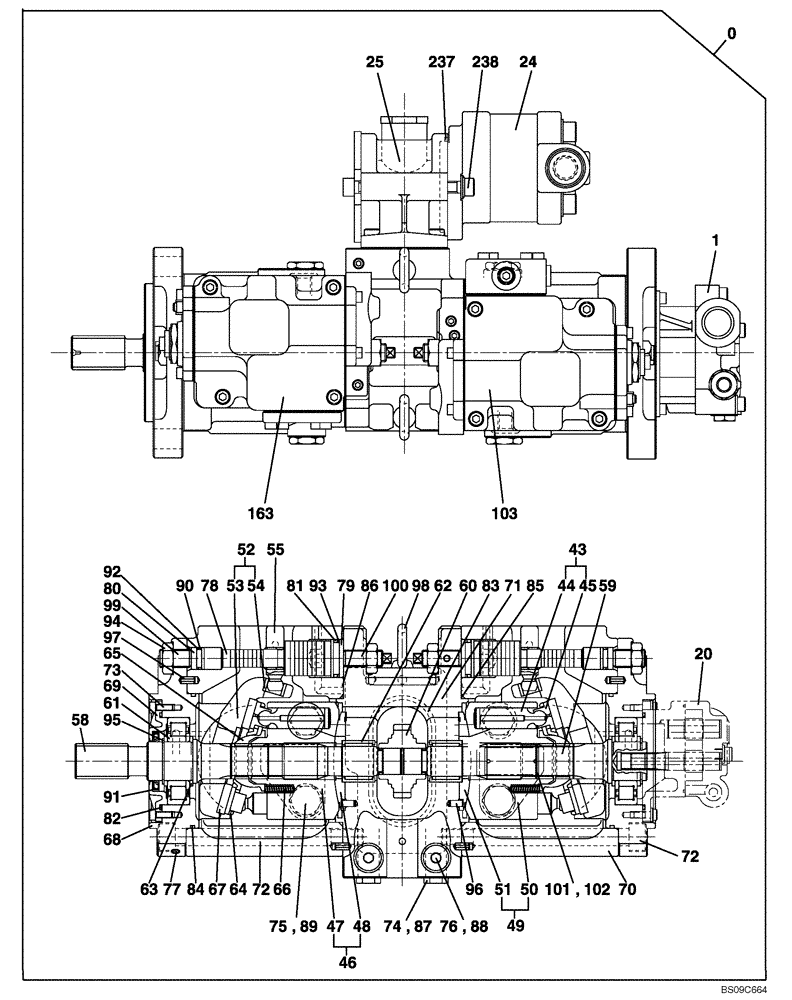

Запчасти Case CX135SR (08-92[01]) - HIGH PRESSURE PUMP - MONOBLOCK BOOM - WITHOUT DOZER BLADE (08) - HYDRAULICS

0

KMJ11920

HYDRAULIC PUMP

Incl. 1 - 146, And See Figure(s) 08-92 02, 08-92 03, 08-92 04

1шт.

0

KMJ11920R

REMAN-HYD PUMP

CX135SR CRAWLER EXCAVATOR TIER 3, HIGH PRESSURE PUMP - MONOBLOCK BOOM - WITHOUT DOZER BLADE (3/08-)

1шт.

0

KMJ11920C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

LJ016090

GEAR

See Figure(s) 08-92 04

1шт.

24

LJ016100

PISTON

Include(s) 25, 26

2шт.

25

NSS

NOT SOLD SEPARAT

Piston

9шт.

26

NSS

NOT SOLD SEPARAT

Shoe

9шт.

27

LJ016110

BARREL

Include(s) 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

Block

1шт.

29

NSS

NOT SOLD SEPARAT

Plate

1шт.

30

LJ016120

BARREL

Include(s) 31, 32

1шт.

31

NSS

NOT SOLD SEPARAT

Block

1шт.

32

NSS

NOT SOLD SEPARAT

Plate

1шт.

33

LR016990

PLATE

2шт.

34

NSS

NOT SOLD SEPARAT

Plate

1шт.

35

NSS

NOT SOLD SEPARAT

Bush

1шт.

36

TA00051

SPECIAL PIN

2шт.

39

LB00884

SHAFT

1шт.

40

LB00885

SHAFT

1шт.

41

LC00228

GEAR

1шт.

42

TB00032

BEARING, ROLLER, CYL,35mm ID x 80mm OD x 21mm

2шт.

43

TB00031

NEEDLE BEARING,28 mm ID x 39 mm OD x 30 mm

2шт.

44

TH00018

SPACER

4шт.

45

TR00054

PLATE

2шт.

46

TB00030

BUSHING

2шт.

47

TG00027

SPRING

18шт.

48

TR00053

PLATE

2шт.

49

TS00009

HOLDER

2шт.

50

TW00035

SEAL

1шт.

51

LW005580

HOUSING

2шт.

52

LS00232

BLOCK

1шт.

53

LW005710

COVER

1шт.

54

TA00055

BOLT

8шт.

55

861-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

4шт.

56

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

4шт.

57

155496A1

PLUG

2шт.

58

LK00004

PLUG

4шт.

59

LK00008

PLUG

2шт.

60

LK00003

PLUG

15шт.

61

TJ00074

PISTON

2шт.

62

TG00026

STOP

2шт.

63

LG00008

STOP

2шт.

64

LE014710

O-RING

2шт.

65

LE013480

O-RING

1шт.

66

TV00002

SCREW

1шт.

67

LE016980

O-RING

2шт.

68

LE016990

O-RING

2шт.

69

LE013470

O-RING

18шт.

70

LE013410

O-RING

2шт.

71

LE013490

O-RING

2шт.

72

154489A1

O-RING

4шт.

73

LE013420

O-RING

2шт.

74

LE017010

OIL SEAL

1шт.

75

153967A1

BACK-UP RING

2шт.

76

154002A1

BACK-UP RING

2шт.

77

164R016VR

NUT

4шт.

78

800-1135

SNAP RING,M35, Ext

2шт.

79

157018A1

COTTER PIN

2шт.

80

338W060Z014B

LINCH PIN

4шт.

81

126R010SR

EYEBOLT

BOLT, EYE

2шт.

82

160295A1

SET SCREW

2шт.

83

LE013510

O-RING

(used under cover on top of pump or under aux gear pump)

1шт.

84

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

85

NSS

NOT SOLD SEPARAT

2шт.

86

LJ016130

GOVERNOR

See Fig. 08-92 02

1шт.

146

LJ016140

GOVERNOR

See Fig. 08-92 03

1шт.
