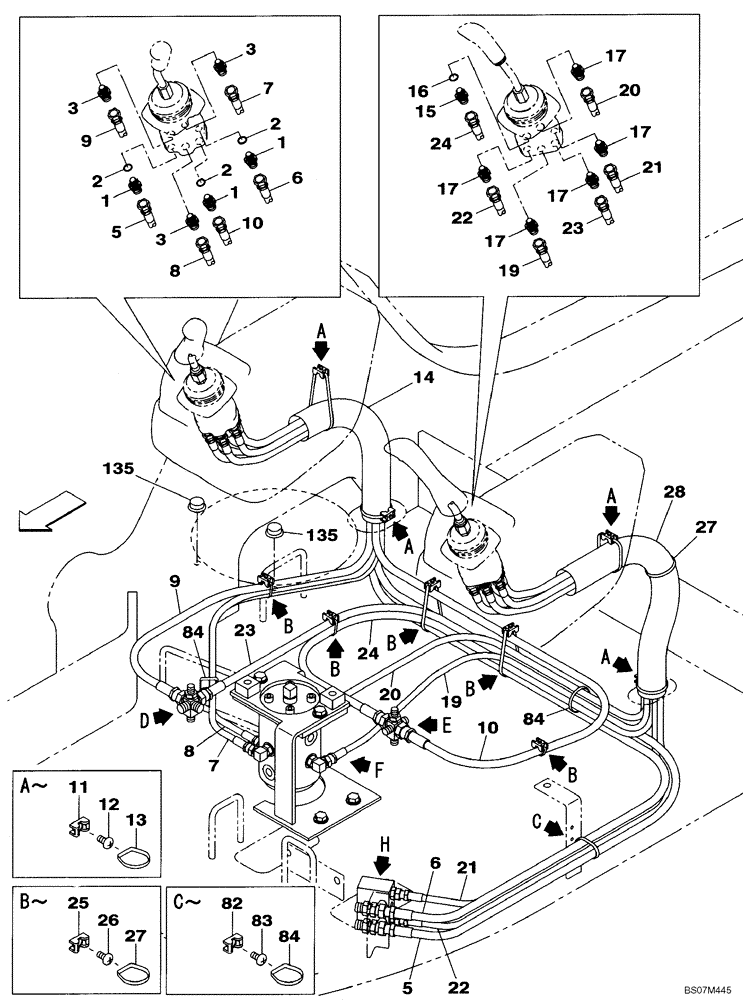

Запчасти Case CX135SR (08-91[04]) - PILOT CONTROL LINES, ATTACHMENT - OPTIONAL (2-WAY) - WITH DOZER BLADE (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

161841A1

HYD CONNECTOR

3шт.

5

KHJ2368

HOSE

9X2350

1шт.

6

KHJ2368

HOSE

9X2350

1шт.

7

KHJ2387

HOSE

9X1550

1шт.

8

KHJ2387

HOSE

9X1550

1шт.

9

KHJ2182

HOSE

9X1450

1шт.

10

KHJ2333

HOSE

9X1920

1шт.

11

150860A1

COLLAR

4шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

13

150498A1

MOUNTING CLIP

4шт.

14

KHJ2578

PROTECTOR

1шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

161841A1

HYD CONNECTOR

5шт.

19

KHJ2213

HOSE

9X1480

1шт.

20

KHJ2213

HOSE

9X1480

1шт.

21

KHJ2391

HOSE

9X1500

1шт.

22

KHJ2387

HOSE

9X1550

1шт.

23

KHJ2335

HOSE

9X1780

1шт.

24

KHJ2336

HOSE

9X1800

1шт.

25

150860A1

COLLAR

5шт.

26

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

6шт.

27

150498A1

MOUNTING CLIP

6шт.

28

KHJ2578

PROTECTOR

1шт.

82

150860A1

COLLAR

1шт.

83

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

84

150496A1

MOUNTING CLIP

3шт.

135

167795A1

CAP

2шт.
