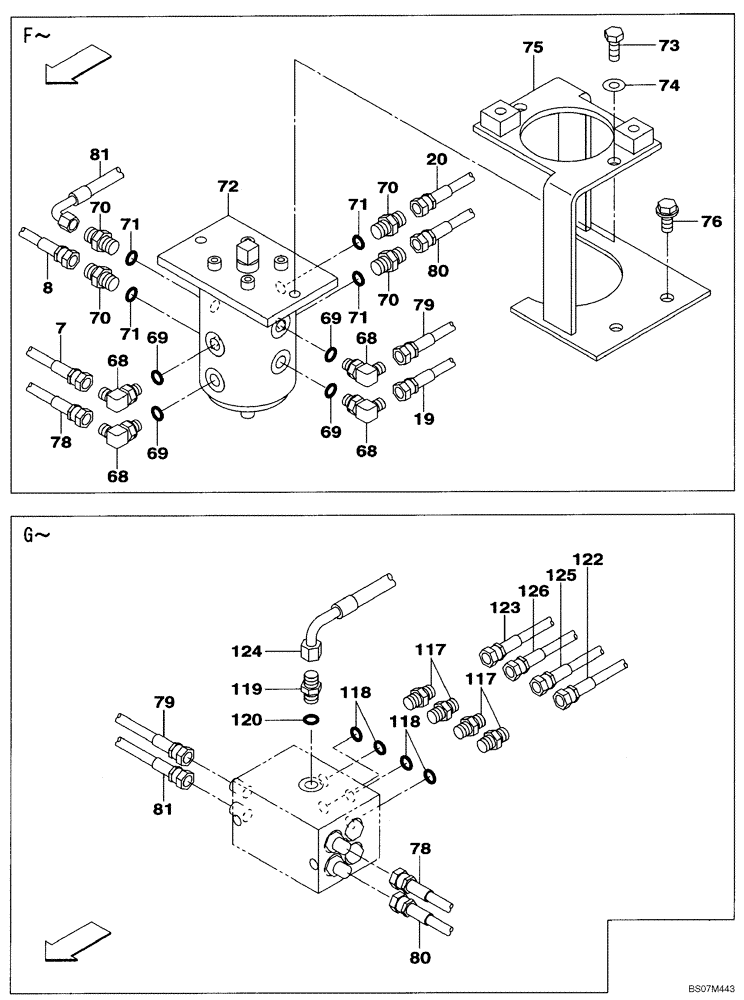

Запчасти Case CX135SR (08-91[02]) - PILOT CONTROL LINES - OPTIONAL (2-WAY) - WITH DOZER BLADE (08) - HYDRAULICS

7

KHJ2387

HOSE

9X1550

1шт.

8

KHJ2387

HOSE

9X1550

1шт.

19

KHJ2213

HOSE

9X1459

1шт.

20

KHJ2213

HOSE

9X1450

1шт.

68

153559A1

ELBOW

4шт.

69

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

70

152747A1

ADAPTER

4шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

KHJ2184

VALVE

See Figure 08 - 84

1шт.

73

167836A1

BOLT,High Strength, M10 x 25mm

2шт.

74

150409A1

WASHER

2шт.

75

KMJ2985

BRACKET

1шт.

76

166052A1

BOLT

M10X20

2шт.

78

KHJ2323

HOSE

ASSY. 9X2200

1шт.

79

KHJ2416

HOSE

9X1480

1шт.

80

KHJ2438

HOSE

9X1650

1шт.

81

KHJ2439

HOSE

9X1500

1шт.

117

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

4шт.

118

154475A1

O-RING

1шт.

119

KHJ2136

ADAPTER

1шт.

120

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

122

KHJ2746

HOSE

9X3300

1шт.

123

KHJ2102

HOSE

9X2700

1шт.

124

KHJ2344

HOSE

9X2500

1шт.

125

KHJ2349

HOSE

9X2550

1шт.

126

KHJ2145

HOSE

9X3200

1шт.
