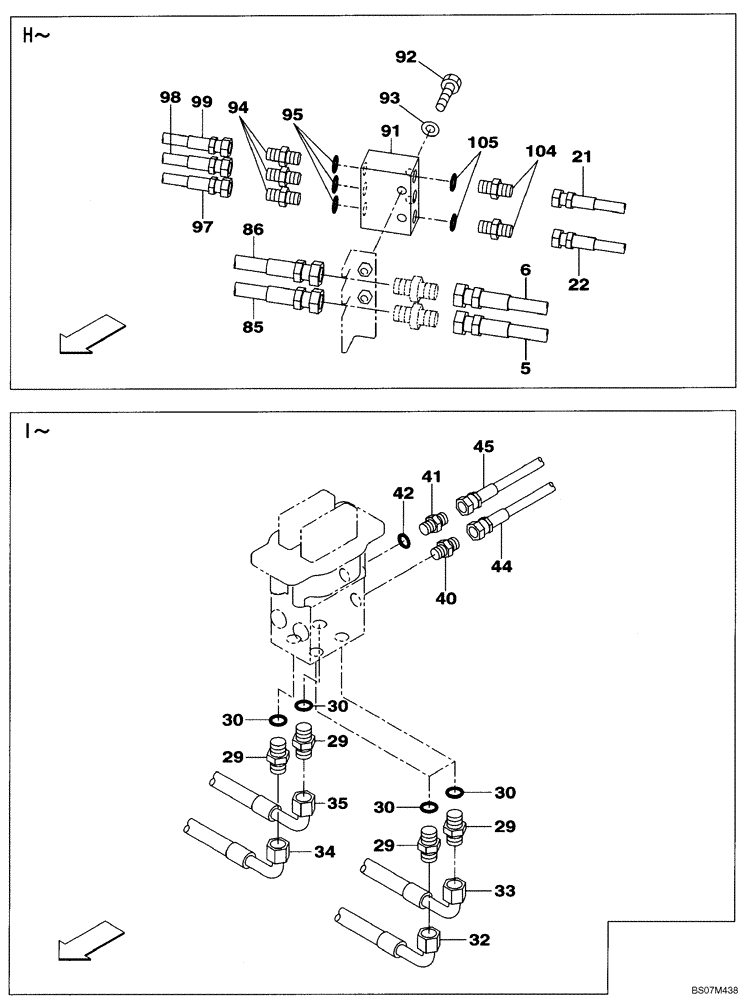

Запчасти Case CX135SR (08-90[03]) - PILOT CONTROL LINES - MODELS WITH DOZER BLADE (08) - HYDRAULICS

5

KHJ2368

HOSE

9X2350

1шт.

6

KHJ2368

HOSE

9X2350

1шт.

21

KHJ2391

HOSE

9X1500

1шт.

22

KHJ2387

HOSE

9X1550

1шт.

29

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

4шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

32

KHJ2167

HOSE

6X2800

1шт.

33

KHJ2166

HOSE,6.3mm ID x 2300mm L

6X2300

1шт.

34

KHJ2340

HOSE

6X2750

1шт.

35

KHJ2341

HOSE

6X2200

1шт.

40

161841A1

HYD CONNECTOR

1шт.

41

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

44

KHJ1507

HYDRAULIC HOSE,6.35 mm ID x 420.00 mm

1шт.

45

168728A1

HYDRAULIC HOSE,6.30 mm ID x 400.00 mm

1шт.

85

KHJ2347

HOSE

9X2500

1шт.

86

KHJ2348

HOSE

9X3200

1шт.

91

KHJ17110

VALVE

1шт.

92

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

93

153081A1

WASHER

2шт.

94

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

95

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

KHJ2074

HOSE

6X2600

1шт.

98

KHJ2075

HOSE

6X2650

1шт.

99

KHJ2074

HOSE

6X2600

1шт.

104

152747A1

ADAPTER

2шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
