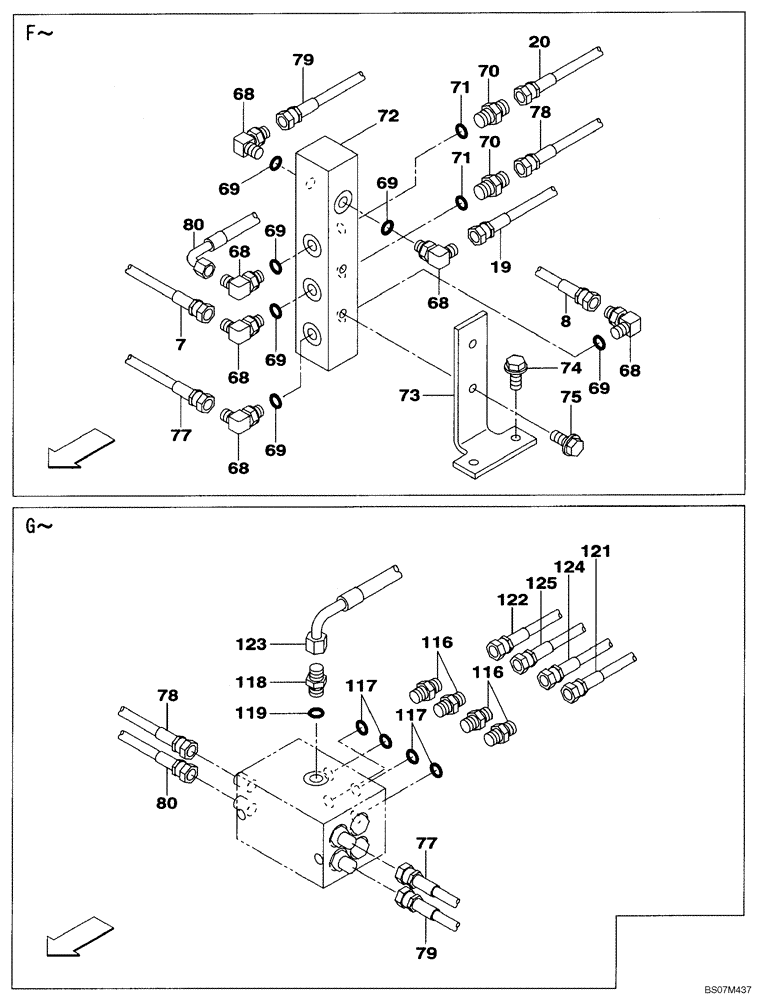

Запчасти Case CX135SR (08-90[02]) - PILOT CONTROL LINES - MODELS WITH DOZER BLADE (08) - HYDRAULICS

7

KHJ2387

HOSE

9X1550

1шт.

8

KHJ2387

HOSE

9X1550

1шт.

19

KHJ2213

HOSE

9X1459

1шт.

20

KHJ2213

HOSE

9X1450

1шт.

68

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

6шт.

69

154475A1

O-RING

1шт.

70

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

2шт.

71

154475A1

O-RING

1шт.

72

KHJ2437

MANIFOLD

1шт.

73

KMJ2965

BRACKET

1шт.

74

166052A1

BOLT

M10X20

2шт.

75

166351A1

BOLT,Sems, M10 x 20mm

M10X20

2шт.

77

KHJ2323

HOSE

ASSY. 9X2200

1шт.

78

KHJ2416

HOSE

9X1480

1шт.

79

KHJ2438

HOSE

9X1650

1шт.

80

KHJ2439

HOSE

9X1500

1шт.

116

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

4шт.

117

154475A1

O-RING

1шт.

118

KHJ2136

ADAPTER

1шт.

119

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

121

KHJ2746

HOSE

9X3300

1шт.

122

KHJ2102

HOSE

9X2700

1шт.

123

KHJ2344

HOSE

9X2500

1шт.

124

KHJ2349

HOSE

9X2550

1шт.

125

KHJ2145

HOSE

9X3200

1шт.
