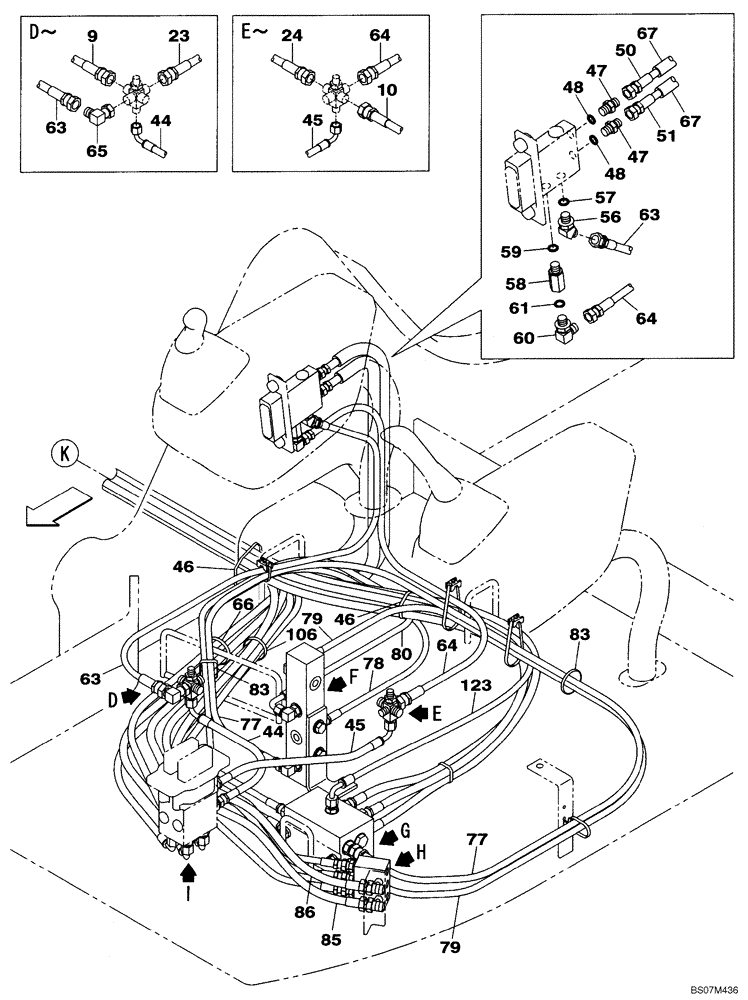

Запчасти Case CX135SR (08-90[01]) - PILOT CONTROL LINES, TRAVEL - MODELS WITH DOZER BLADE (08) - HYDRAULICS

9

KHJ2182

HOSE

9X1450

1шт.

10

KHJ2333

HOSE

9X1920

1шт.

23

KHJ2335

HOSE

9X1780

1шт.

24

KHJ2336

HOSE

9X1800

1шт.

44

KHJ1507

HYDRAULIC HOSE,6.35 mm ID x 420.00 mm

1шт.

45

168728A1

HYDRAULIC HOSE,6.30 mm ID x 400.00 mm

1шт.

46

150498A1

MOUNTING CLIP

3шт.

47

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

50

KHJ2174

HOSE

6X3100

1шт.

51

KHJ2071

HOSE

6X2450

1шт.

56

KHJ0994

ADAPTER

1шт.

57

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

58

162525A1

STUD

1шт.

59

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

60

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

61

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

63

KHJ2052

HOSE

6X1100

1шт.

64

KHJ2052

HOSE

6X1100

1шт.

65

163814A1

ELBOW

1шт.

66

150496A1

MOUNTING CLIP

1шт.

67

KHR4065

PLASTIC-RUBBER TUBE

2шт.

77

KHJ2323

HOSE

ASSY 9X2200

1шт.

78

KHJ2416

HOSE

9X1480

1шт.

79

KHJ2438

HOSE

9X1650

1шт.

80

KHJ2439

HOSE

9X1500

1шт.

83

150496A1

MOUNTING CLIP

3шт.

85

KHJ2347

HOSE

9X2500

1шт.

86

KHJ2348

HOSE

9X3200

1шт.

106

150496A1

MOUNTING CLIP

1шт.

123

KHJ2344

HOSE

6X2500

1шт.
