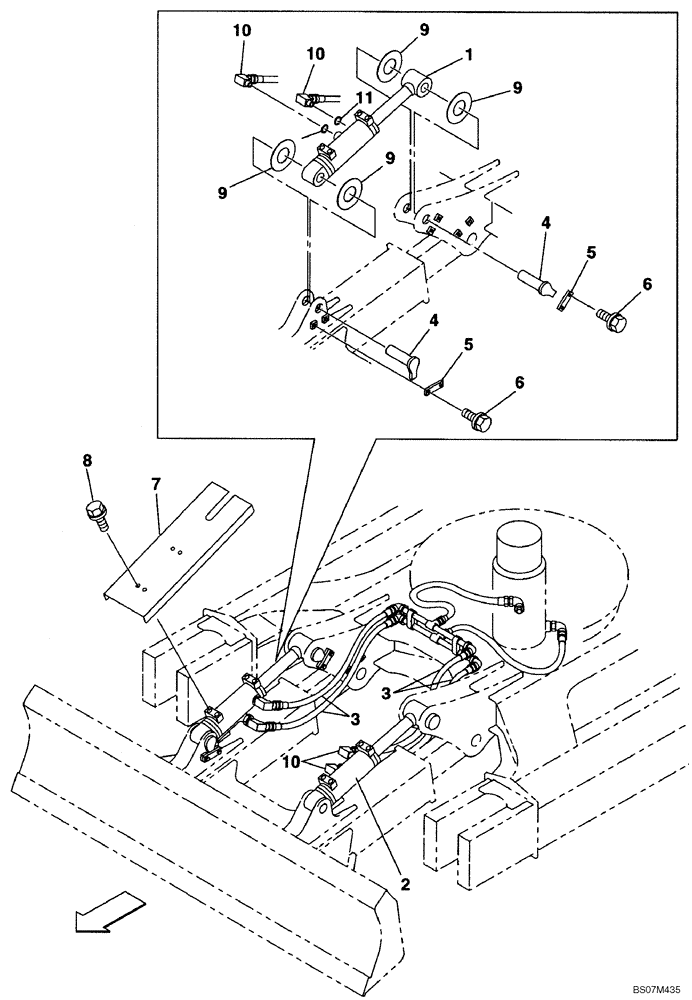

Запчасти Case CX135SR (08-89) - HYDRAULICS - BLADE, DOZER (08) - HYDRAULICS

1

KMV2367

HYDRAULIC CYLINDER

Blade, Right Hand, See Figure 08-98

1шт.

1

KMV2367R

REMAN-HYD CYLINDER

CX135SR CRAWLER EXCAVATOR TIER 3, Blade, Right Hand (3/08-)

1шт.

1

KMV2367C

CORE-HYD CYLINDER

Return Number

1шт.

2

KMV2368

HYDRAULIC CYLINDER

Blade, Left Hand, See Figure 08-99

1шт.

2

KMV2368R

REMAN-HYD CYLINDER

CX135SR CRAWLER EXCAVATOR TIER 3, Blade, Left Hand (3/08-)

1шт.

2

KMV2368C

CORE-HYD CYLINDER

Return Number

1шт.

3

168697A1

HOSE ASSY.

4шт.

4

KMV2147

PIN

PIN

4шт.

5

KHV0456

PLATE

4шт.

6

166351A1

BOLT,Sems, M10 x 20mm

8шт.

7

KMV10150

PROTECTOR

2шт.

8

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

8шт.

9

KAV0395

SHIM

4шт.

10

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 11

4шт.

11

154475A1

O-RING

1шт.
