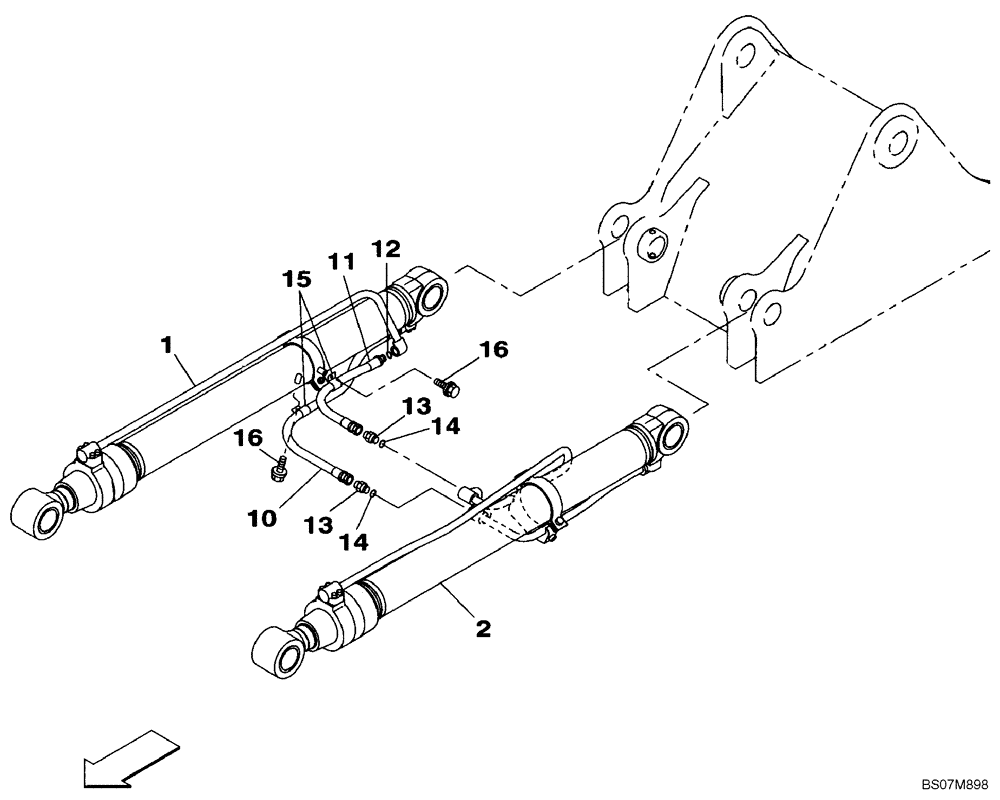

Запчасти Case CX135SR (08-77) - HYDRAULICS - BOOM CYLINDER, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

1

KMV13960

HYDRAULIC CYLINDER

BOOM CYLINDER - RIGHT, See Figure 08-78

1шт.

1

KMV13960R

REMAN-HYD CYLINDER

CX135SR CRAWLER EXCAVATOR TIER 3, BOOM CYLINDER, RIGHT (3/08-)

1шт.

1

KMV13960C

CORE-HYD CYLINDER

Return Number

1шт.

2

KMV13970

HYDRAULIC CYLINDER

BOOM CYLINDER - LEFT, See Figure 08-79

1шт.

2

KMV13970R

REMAN-HYD CYLINDER

CX135SR CRAWLER EXCAVATOR TIER 3, BOOM CYLINDER, RIGHT, MODELS WITHOUT LOAD HOLD (3/08-)

1шт.

2

KMV13970C

CORE-HYD CYLINDER

Return Number

1шт.

10

KMV14290

HOSE ASSY.

12X800 mm

1шт.

11

KMV10550

HOSE ASSY.

1шт.

12

154487A1

O-RING

1шт.

13

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

2шт.

14

154487A1

O-RING

1шт.

15

KHV0472

HOSE CLAMP

2шт.

16

166345A1

BOLT

M8X16

2шт.
