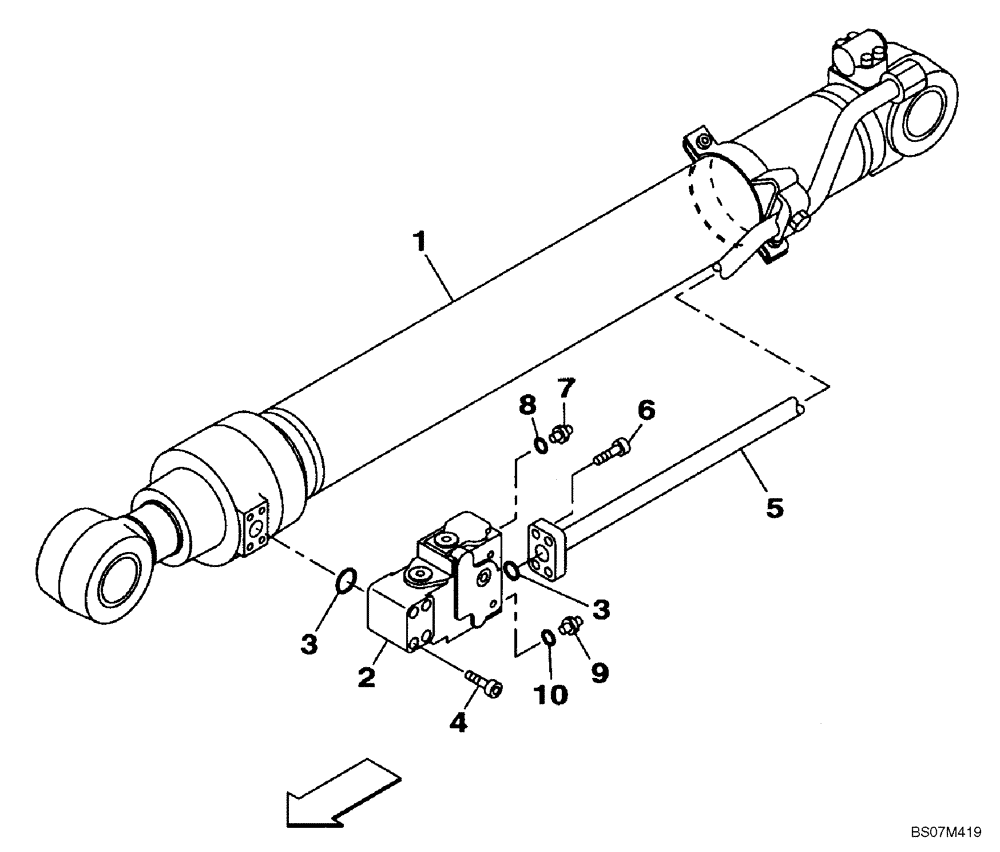

Запчасти Case CX135SR (08-72[02]) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

KNV1621

HYDRAULIC CYLINDER

See Figure 08-73

1шт.

1

KNV1621R

REMAN-HYD CYLINDER

CX135SR CRAWLER EXCAVATOR TIER 3 (3/08-)

1шт.

1

KNV1621C

CORE-HYD CYLINDER

Return Number

1шт.

2

KRV11110

VALVE SECTION

See Figure 08-74

1шт.

3

155210A1

O-RING

2шт.

4

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

5

KMV12990

HYD TUBE

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

7

152747A1

ADAPTER

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

10

154475A1

O-RING

1шт.
