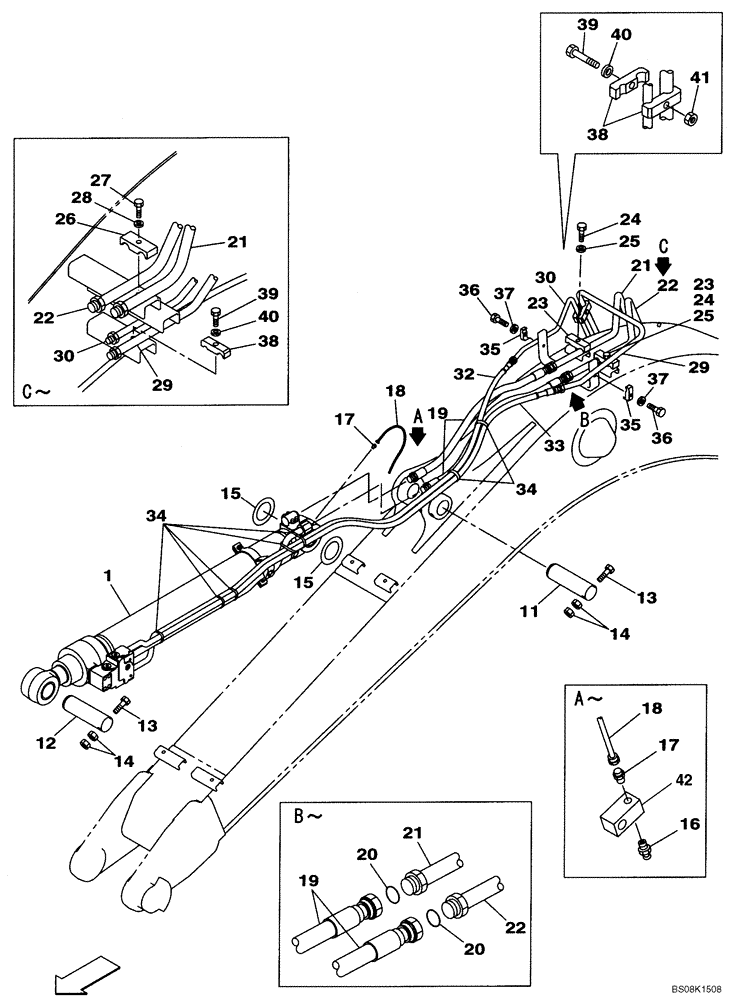

Запчасти Case CX135SR (08-72[01]) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

KNV1621

HYDRAULIC CYLINDER

See Fig. 08-73

1шт.

1

KNV1621R

REMAN-HYD CYLINDER

CX135SR CRAWLER EXCAVATOR TIER 3 (3/08-)

1шт.

1

KNV1621C

CORE-HYD CYLINDER

Return Number

1шт.

11

150101A1

PIN

1шт.

12

KNV1598

HITCH PIN

1шт.

13

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

2шт.

14

829-13416

NUT,M16 x 1.5, Cl 10

4шт.

15

160735A1

ADJUSTING PLATE

2шт.

16

153630A1

LUBE NIPPLE

1шт.

17

150190A1

FITTING

2шт.

18

152549A1

TUBE,4.32 mm ID, 6.35 mm OD

750 mm

1шт.

19

KRV2405

HYDRAULIC HOSE,19mm ID x 1000mm L

2шт.

20

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

21

KMV2375

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

22

KMV2376

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

23

MFV6195

PIPE CLAMP

2шт.

24

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

25

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

26

152085A1

COLLAR

1шт.

27

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

28

150811A1

WASHER

1шт.

29

KMV13820

HYD TUBE

1шт.

30

KMV13830

HYD TUBE

1шт.

NSS

NOT SOLD SEPARAT

HOSE SPL., Incl. 32 & 33

1шт.

32

KHJ16820

HYDRAULIC HOSE

2100 mm

1шт.

33

KHJ16830

HYDRAULIC HOSE

2200 mm

1шт.

34

150067A1

MOUNTING CLIP

7шт.

35

169149A1

COLLAR

2шт.

36

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

37

150811A1

WASHER

2шт.

38

KMV12970

HOSE CLAMP

3шт.

39

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

40

150811A1

WASHER

2шт.

41

829-1412

NUT,M12, Cl 10.9

1шт.

42

168623A1

BAR

1шт.
