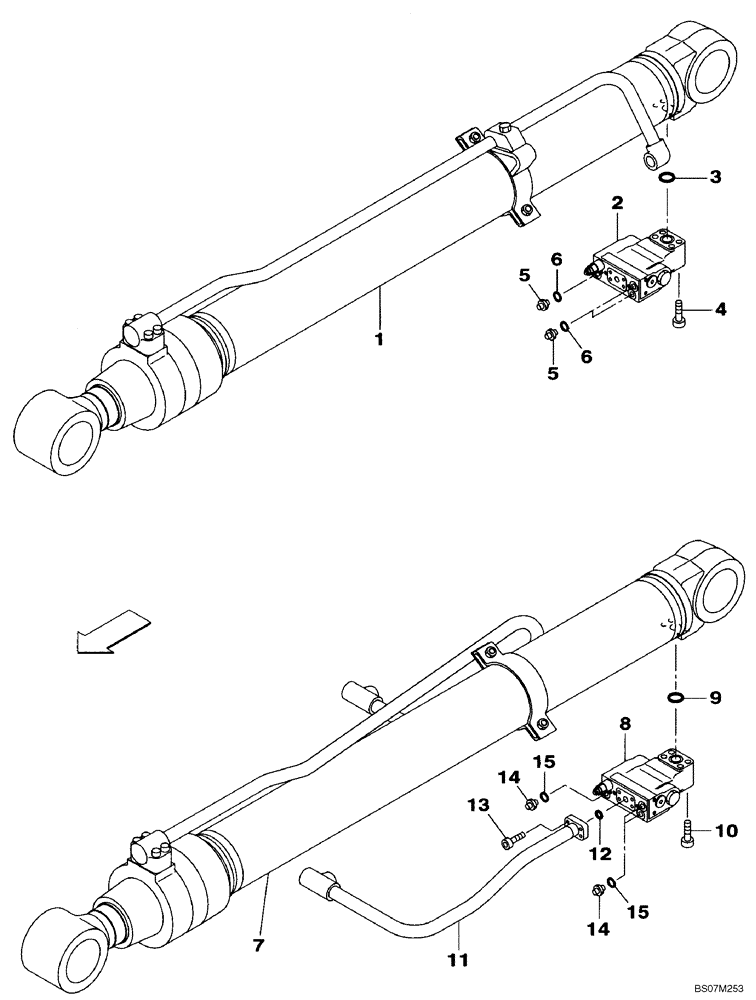

Запчасти Case CX135SR (08-67) - HYDRAULICS - BOOM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

BOOM CYLINDER - RIGHT, See Figure 08-70

1шт.

2

KNV12850

VALVE SECTION

See Figure 08-69

1шт.

3

155210A1

O-RING

1шт.

4

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

NSS

NOT SOLD SEPARAT

BOOM CYLINDER - LEFT, See Figure 08-71

1шт.

8

KNV12850

VALVE SECTION

See Figure 08-69

1шт.

9

155210A1

O-RING

1шт.

10

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

11

KMV13050

HYD TUBE

1шт.

12

161096A1

O-RING

1шт.

13

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

4шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
