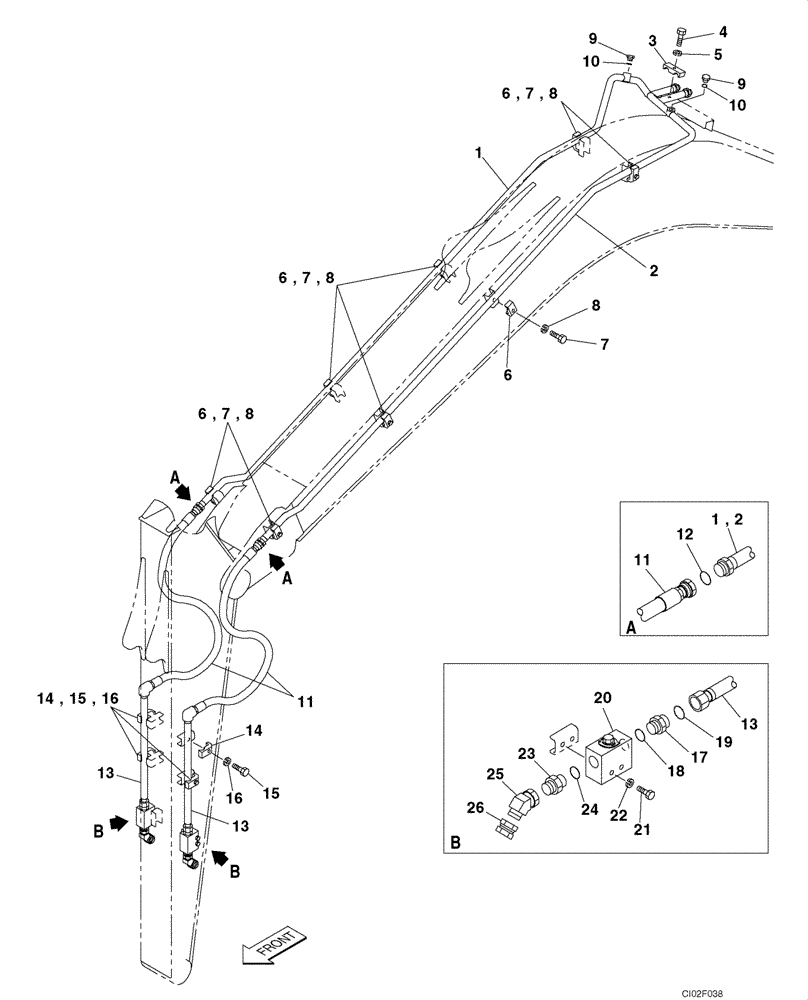

Запчасти Case CX135SR (08-54) - HYDRAULICS, OPTION LINE - SINGLE ACTING AND MULTI-PURPOSE + 3 WAY VALVE CIRCUITS (08) - HYDRAULICS

1

KMV2748

HYD TUBE,26 mm ID x 34 mm OD

1шт.

2

KMV2677

HYD TUBE

1шт.

3

162308A1

COLLAR

1шт.

4

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

5

183-112VR

SPRING WASHER

1шт.

6

153731A1

SPECIAL CLAMP

8шт.

7

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

8шт.

8

183-112VR

SPRING WASHER

8шт.

9

152924A1

PLUG

Incl. 10

2шт.

10

154503A1

O-RING

1шт.

11

KRV2780

HYDRAULIC HOSE,25.40 mm ID x 1500.00 mm

2.40 M (94-1/2 in) Arm

2шт.

11

KLV0392

HOSE ASSY.,25.40 mm ID x 1800.00 mm

Arm

2шт.

12

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

13

KMV2678

HYD TUBE,26 mm ID x 34 mm OD

2.40 M (94-1/2 in) Arm

2шт.

13

KMV2681

HYD TUBE,26 mm ID x 34 mm OD

2.85 M (112-1/4 in) Arm

2шт.

14

153731A1

SPECIAL CLAMP

4шт.

15

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

16

183-112VR

SPRING WASHER

4шт.

17

KHJ1349

ADAPTER

Incl. 18

2шт.

18

154523A1

O-RING

1шт.

19

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

20

KHV10690

VALVE SECTION

Replaces KHV0452

2шт.

21

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

22

183-112VR

SPRING WASHER

4шт.

23

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 24

2шт.

24

154523A1

O-RING

1шт.

25

KBA0377

ELBOW

2шт.

26

153684A1

PLUG

2шт.
