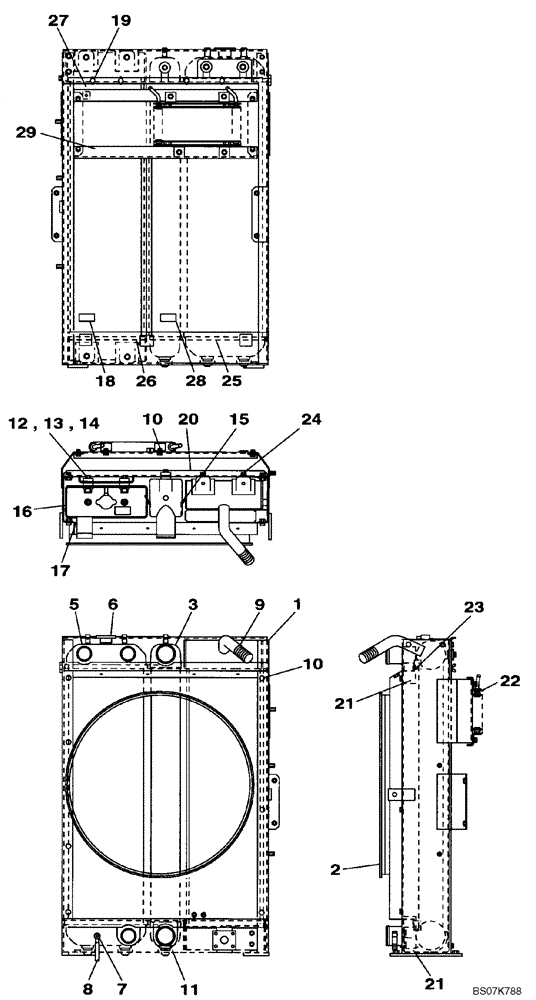

Запчасти Case CX135SR (02-05A) - RADIATOR ASSY (02) - ENGINE

KMH10810

RADIATOR

Incl. 1 - 29

1шт.

1

LT001800

FRAME

FRAME

1шт.

2

LG006450

SHROUD

SHROUD

1шт.

3

LN002010

INTERCOOLER

1шт.

LN002220

RADIATOR

RADIATOR, Incl. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

Radiator

1шт.

6

LR015830

RADIATOR CAP

Cap

1шт.

7

LK00283

FAUCET

1шт.

8

LK00284

HOSE

1шт.

9

LN002040

OIL COOLER

1шт.

10

LA011210

BOLT,Spcl

Bolt, M8X1.25

19шт.

11

LQ000370

RUBBER SEAL

Rubber

3шт.

12

LQ000380

RUBBER SEAL

Rubber

3шт.

13

LH005030

COLLAR

Collar

3шт.

14

LA011220

BOLT,Spcl

Bolt

3шт.

15

LE015320

SEAL PROTECTION

Packing

2шт.

16

TE00881

SEAL PROTECTION

Packing

2шт.

17

LE016710

SEALING STRIP

SEAL PROTECTION, Packing

1шт.

18

LJ015880

RADIATOR GRILLE

Filter

1шт.

19

LUG0096

BOLT,Spcl

4шт.

20

LS003730

SUPPORT

Bracket

1шт.

21

LE016720

SEALING STRIP

PACKING

1шт.

22

LN002050

FUEL COOLER

1шт.

23

LE016730

SEALING STRIP

PACKING

1шт.

24

LA011230

BOLT,Spcl

M10X1.5

1шт.

25

LE016740

SEALING STRIP

Packing

2шт.

26

LE016750

SEALING STRIP

PACKING

8шт.

27

LS003740

SUPPORT

BRACKET

2шт.

28

LJ015890

RADIATOR GRILLE

FILTER

1шт.

29

LS003750

SUPPORT

BRACKET

1шт.
