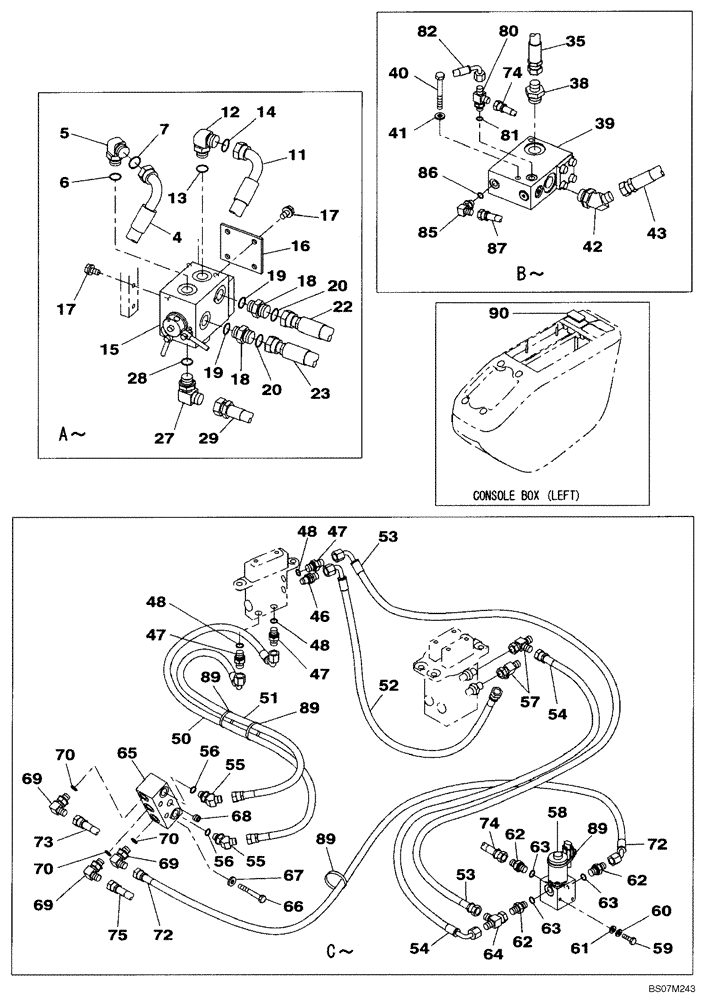

Запчасти Case CX135SR (08-50) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS

4

KMJ11330

HOSE ASSY.

19X600 mm

1шт.

5

KHJ1804

ELBOW

1шт.

6

154503A1

O-RING

1шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

11

KMJ2868

HOSE ASSY.,19.00 mm ID x 620.00 mm

1шт.

12

KHJ1804

ELBOW

1шт.

13

154503A1

O-RING

1шт.

14

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

15

KHJ2020

HYDRAULIC VALVE

See Fig. 08-51

1шт.

16

KMJ2866

BRACKET

1шт.

17

166351A1

BOLT,Sems, M10 x 20mm

M10X20

6шт.

18

KHJ1348

ADAPTER

2шт.

19

154503A1

O-RING

1шт.

20

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

22

KMJ2869

HOSE ASSY.,19.00 mm ID x 1920.00 mm

1шт.

23

KMJ2869

HOSE ASSY.,19.00 mm ID x 1920.00 mm

1шт.

27

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

1шт.

28

154503A1

O-RING

1шт.

29

KMJ11340

HOSE ASSY.

19X900 mm

1шт.

35

KMJ3013

HOSE ASSY.,12.70 mm ID x 880.00 mm

1шт.

38

168988A1

ADAPTER

1шт.

39

KHJ1473

VALVE

See Fig. 08-52

1шт.

40

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

41

150409A1

WASHER

2шт.

42

KHJ2243

ELBOW

1шт.

43

KMJ2764

HOSE ASSY.,12.70 mm ID x 700.00 mm

1шт.

46

161841A1

HYD CONNECTOR

1шт.

47

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

50

KHJ2036

HOSE

6X750 mm

1шт.

51

KHJ2088

HOSE

6X850 mm

1шт.

52

KHJ2238

HOSE

6X320 mm

1шт.

53

KHJ2180

HOSE,6.3mm ID x 500mm L

6X500 mm

1шт.

54

KHJ2090

HOSE

6X1000 mm

1шт.

55

150933A1

ELBOW

2шт.

56

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

KHJ2130

TEE

2шт.

58

162538A1

VALVE

See Fig. 08-53

1шт.

59

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

60

183-106VR

SPRING WASHER

2шт.

61

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

62

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

63

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

64

KHJ2130

TEE

1шт.

65

KHJ17100

VALVE PRESSURE RELIE

1шт.

66

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

67

153081A1

WASHER

2шт.

68

150821A1

PLUG

1шт.

69

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

3шт.

70

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

KHJ2244

HOSE

6X600 mm

1шт.

73

KHJ2074

HOSE

6X2600 mm

1шт.

74

KHJ2074

HOSE

6X2600 mm

1шт.

75

KHJ2174

HOSE

6X3100 mm

1шт.

80

159497A1

TEE

1шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

82

KHJ2092

HOSE

6X1100 mm

1шт.

85

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

86

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

87

KHJ2245

HOSE

6X850 mm

1шт.

89

150496A1

MOUNTING CLIP

3шт.

90

KHR2948

SWITCH

1шт.
