Запчасти Case CX135SR (08-48) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS

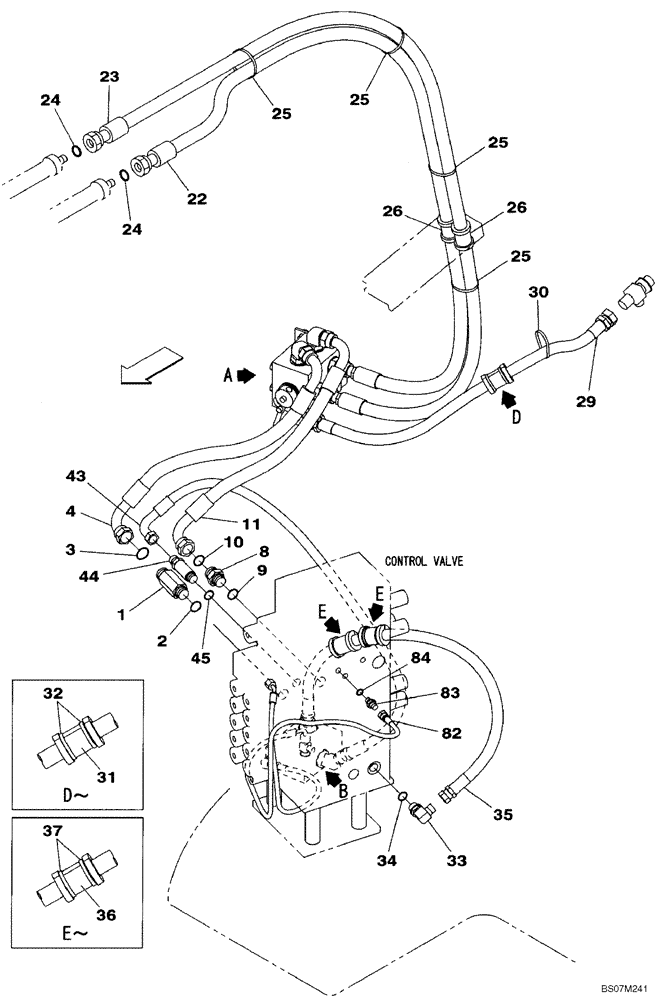

Схема запчастей Case CX135SR - (08-48) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS
36
82
44
30
32
25
24
11
3
1
8
35
37
34
2
25
9
24
25
26
33
23
45
43
22
25
4
31
84
29
26
83
10

Артикул

Название

Примечание

Количество

1

KHJ1495

ADAPTER

1шт.

2

154503A1

O-RING

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

4

KMJ11330

HOSE ASSY.

1шт.

8

KHJ1348

ADAPTER

1шт.

9

154503A1

O-RING

1шт.

10

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

11

KMJ2868

HOSE ASSY.,19.00 mm ID x 620.00 mm

1шт.

22

KMJ2869

HOSE ASSY.,19.00 mm ID x 1920.00 mm

1шт.

23

KMJ2869

HOSE ASSY.,19.00 mm ID x 1920.00 mm

1шт.

24

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

25

150498A1

MOUNTING CLIP

4шт.

26

KHJ2023

HOSE CLAMP

2шт.

29

KMJ11340

HOSE ASSY.

19X900 mm

1шт.

30

150498A1

MOUNTING CLIP

2шт.

31

KHJ2022

HOSE CLAMP

1шт.

32

150496A1

MOUNTING CLIP

2шт.

33

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

1шт.

34

154487A1

O-RING

1шт.

35

KMJ3013

HOSE ASSY.,12.70 mm ID x 880.00 mm

1шт.

36

KHJ2021

HOSE CLAMP

2шт.

37

150496A1

MOUNTING CLIP

4шт.

43

KMJ2764

HOSE ASSY.,12.70 mm ID x 700.00 mm

1шт.

45

154487A1

O-RING

1шт.

82

KHJ2092

HOSE

6X1100 mm

1шт.

83

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

Выбрано товаров: 27
