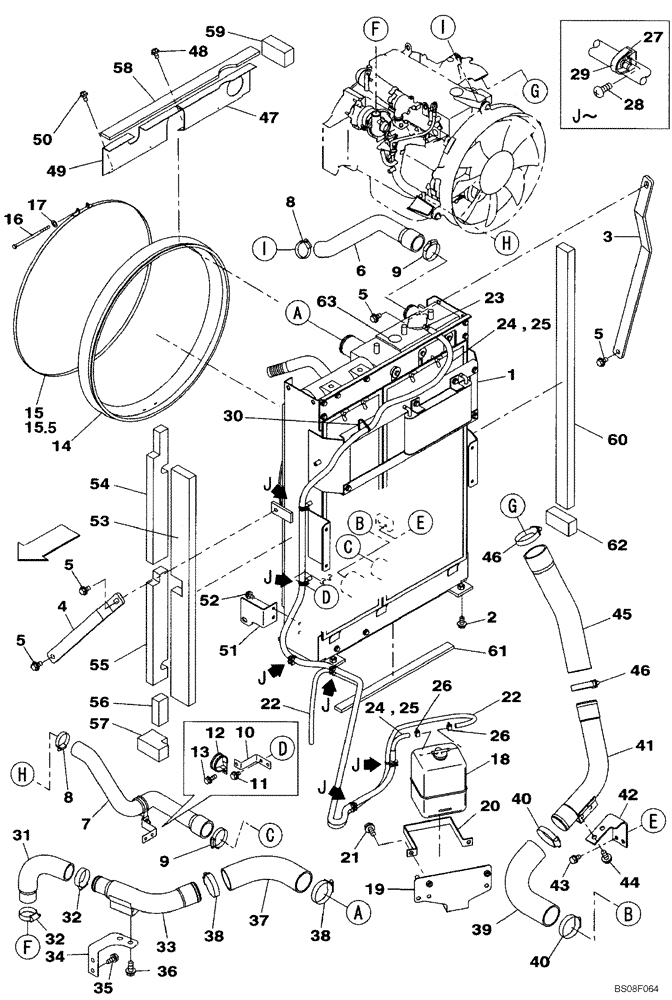

Запчасти Case CX135SR (02-05) - RADIATOR AND CONNECTIONS (02) - ENGINE

1

KMH10810

RADIATOR

See Figure 02-05A

1шт.

2

166352A1

BOLT

M12X30

4шт.

3

KMH10340

STAY

1шт.

4

KMH10350

STAY

1шт.

5

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

6

KMH10320

RADIATOR HOSE

1шт.

7

KMH10330

RADIATOR HOSE

1шт.

8

165792A1

COLLAR

2шт.

9

165793A1

COLLAR

2шт.

10

KLH10270

SUPPORT

1шт.

11

166345A1

BOLT

M8X16

2шт.

12

KLH10280

COLLAR CLAMP

1шт.

13

KHJ1215

BOLT,Spcl

1шт.

14

KNH10600

RUBBER SEAL

Replaces KLH10900

1шт.

15

KHH12380

MOUNTING CLIP

If Used, Replaces KLH10300

1шт.

15.5

KHH12410

COLLAR CLAMP

Replaces KLH1030

1шт.

16

KRH1377

BOLT,Spcl

M5X100, No Longer Used, Order KHH12410

1шт.

17

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

No Longer Used, Order KHH12410

1шт.

18

KHH0260

TANK

1шт.

19

KMH10450

SUPPORT

CX135SR DCH135R3N7EAE7001 To DCHR3N8EAE7115

1шт.

20

KRH1270

HOLDER

1шт.

19

KMH10451

BRACKET

CX135SR DCHR3N8EAE7116 And After

1шт.

21

166052A1

BOLT

4шт.

22

KHH0389

HOSE

1шт.

23

165951A1

CLAMP

1шт.

24

KHH0460

HOSE,2300.00 mm

1шт.

25

KBR0652

FLEXIBLE SHEATH

1шт.

26

165951A1

CLAMP

2шт.

27

150860A1

COLLAR

6шт.

28

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

6шт.

29

150496A1

MOUNTING CLIP

6шт.

30

150496A1

MOUNTING CLIP

1шт.

31

KMH10390

RADIATOR HOSE

1шт.

32

164966A1

HOSE CLAMP

2шт.

33

KMH10610

INLET MANIFOLD

1шт.

34

KMH10620

BRACKET

1шт.

35

166052A1

BOLT

M10X25

2шт.

36

166352A1

BOLT

M12X30

2шт.

37

KMH10380

RADIATOR HOSE

1шт.

38

164967A1

COLLAR

2шт.

39

KLH10330

RADIATOR HOSE

1шт.

40

164967A1

COLLAR

2шт.

41

KMH10840

INLET MANIFOLD

1шт.

42

KMH10590

SUPPORT

1шт.

43

166351A1

BOLT,Sems, M10 x 20mm

M10X20

2шт.

44

166352A1

BOLT

M12X30

2шт.

45

KMH10830

RADIATOR HOSE

1шт.

46

164967A1

COLLAR

2шт.

47

KMH10360

SUPPORT

1шт.

48

166350A1

BOLT

Replaces 166345A1

2шт.

49

KMH10370

SUPPORT

1шт.

50

166345A1

BOLT

M8X16

2шт.

51

KMH10600

SUPPORT

1шт.

52

166345A1

BOLT

M8X16

2шт.

53

KMH10470

SEAL

1шт.

54

KMH10480

SEAL

1шт.

55

KMH10490

SEAL

1шт.

56

KMH10500

SEAL

1шт.

57

KMH10510

SEAL

1шт.

58

KMH10700

SEAL

1шт.

59

KMH10710

SEAL

1шт.

60

KMH10540

SEAL

1шт.

61

KMH10550

SEAL

1шт.

62

KMN1624

NOISE PROTECTION

1шт.

63

162468A1

DECAL

1шт.
