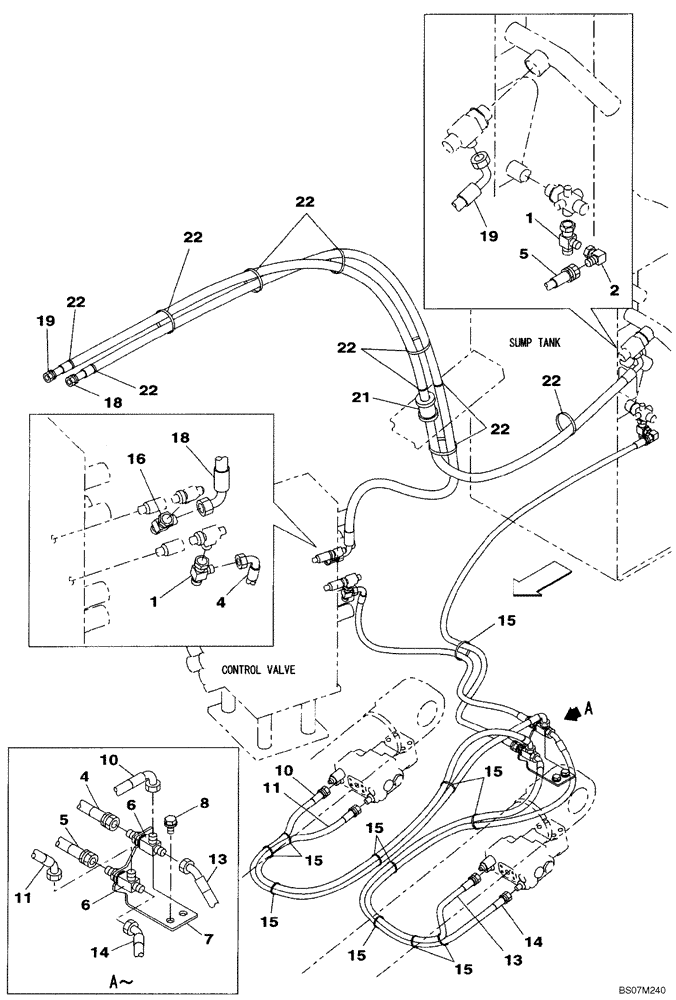

Запчасти Case CX135SR (08-43) - PILOT CONTROL LINES - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

1

KHJ18490

TEE

2шт.

2

163814A1

ELBOW

1шт.

4

KHJ1199

HYDRAULIC HOSE

1шт.

5

KHJ1446

HYDRAULIC HOSE

1шт.

6

KMJ11490

TEE

2шт.

7

KMJ11500

BRACKET

1шт.

8

166351A1

BOLT,Sems, M10 x 20mm

M10X20

2шт.

10

KHJ18510

HYDRAULIC HOSE

1550 mm

1шт.

11

KHJ18400

HYDRAULIC HOSE

1500 mm, Replaces KHJ18500

3шт.

13

KHJ18400

HYDRAULIC HOSE

1500 mm, Replaces KHJ18500

1шт.

14

KHJ18400

HYDRAULIC HOSE

1500 mm, Replaces KHJ18500

1шт.

15

150496A1

MOUNTING CLIP

11шт.

16

KHJ2234

TEE

1шт.

18

KHJ1571

HYDRAULIC HOSE,9.52 mm ID x 2050.00 mm

1шт.

19

KHJ2280

HYDRAULIC HOSE,12.70 mm ID x 2400.00 mm

1шт.

20

157768A1

PLASTIC-RUBBER TUBE

2шт.

21

KHJ2289

HOSE CLAMP

1шт.

22

150496A1

MOUNTING CLIP

9шт.

KMJ12480

SEAL PROTECTION

Not Shown

2шт.

KAJ5001

RUBBER PAD

Not Shown

1шт.
