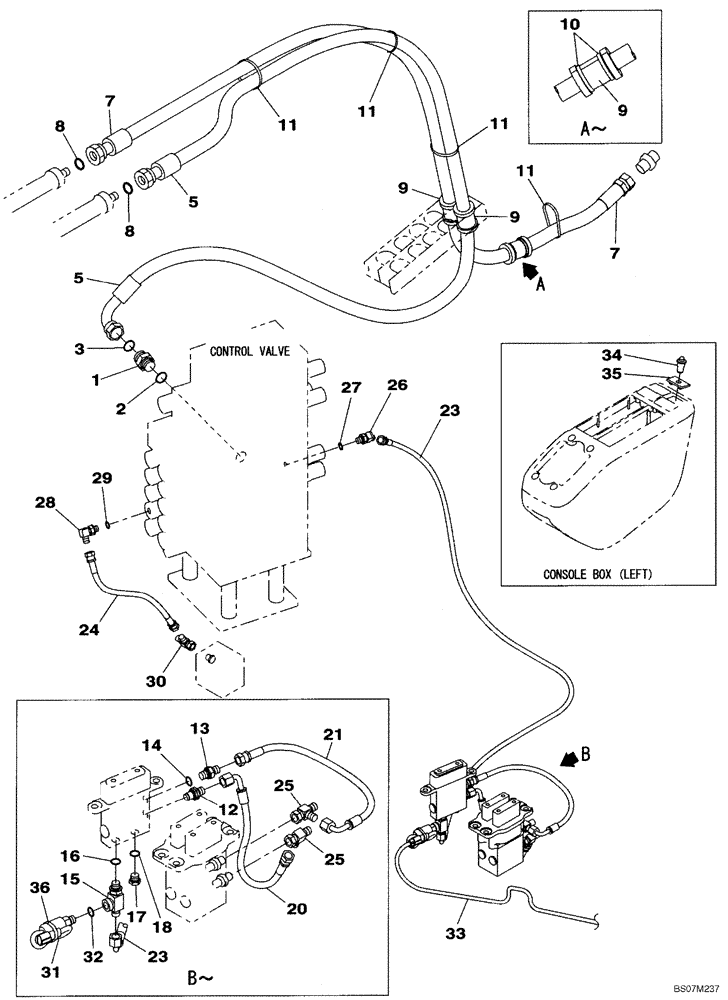

Запчасти Case CX135SR (08-40) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

1

KHJ1348

ADAPTER

1шт.

2

154503A1

O-RING

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

5

KMJ2874

HOSE ASSY.,19.00 mm ID x 2350.00 mm

1шт.

7

KMJ11930

HOSE ASSY.

1970 mm

1шт.

8

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

9

KHJ2023

HOSE CLAMP

3шт.

10

150496A1

MOUNTING CLIP

2шт.

11

150498A1

MOUNTING CLIP

4шт.

12

161841A1

HYD CONNECTOR

1шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

167666A1

FITTING

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

159002A1

PLUG

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20

KHJ2238

HOSE

320 mm

1шт.

21

KHJ2179

HOSE

450 mm

1шт.

23

KHJ2341

HOSE

2200 mm

1шт.

24

KHJ2046

HOSE

380 mm

1шт.

25

KHJ2130

TEE

2шт.

26

150933A1

ELBOW

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

KHJ2130

TEE

1шт.

31

KHR10820

PRESSURE SWITCH

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

KRR13860

HARNESS

1шт.

34

KHR19620

INSTRUMENT LIGHT

1шт.

35

KHR19630

PROTECTION CAP

1шт.

36

150496A1

MOUNTING CLIP

1шт.
