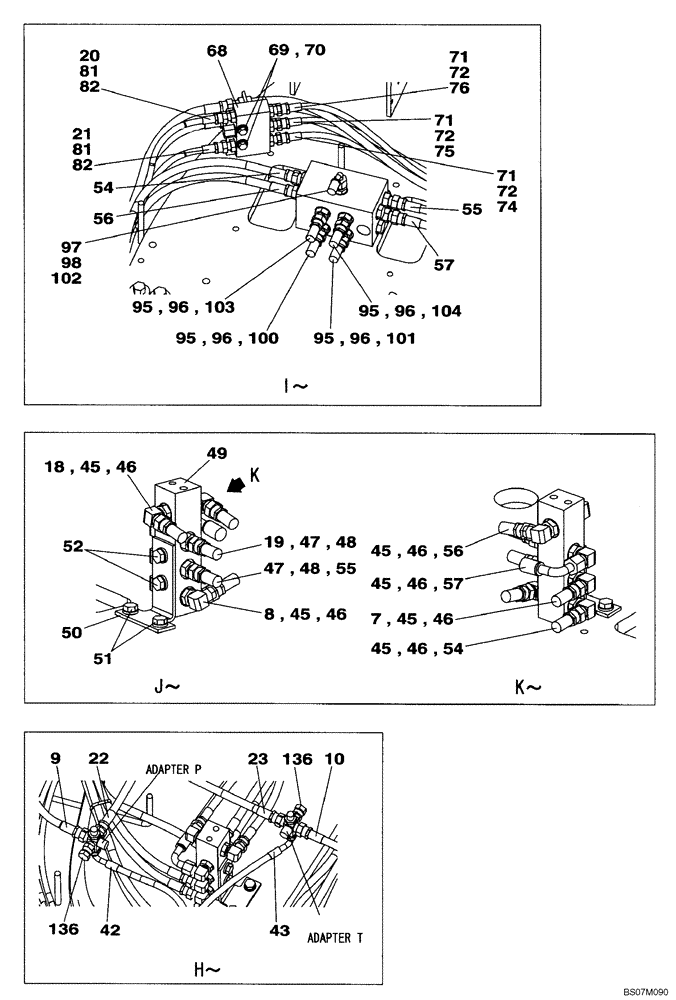

Запчасти Case CX135SR (08-35) - PILOT CONTROL LINES - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

7

KHJ2387

HOSE

1550 mm (61 in)

1шт.

8

KHJ2387

HOSE

1550 mm (61 in)

1шт.

9

KHJ2182

HOSE

1450 mm (57-1/8 in)

1шт.

10

KHJ2333

HOSE

1920 mm (75-5/8 in)

1шт.

18

KHJ2213

HOSE

1480 mm (58-3/8 in)

1шт.

19

KHJ2213

HOSE

1480 mm (58-3/8 in)

1шт.

20

KHJ2391

HOSE

1500 mm (59-1/8 in)

1шт.

21

KHJ2387

HOSE

1550 mm (61 in)

1шт.

22

KHJ2335

HOSE

1780 mm (70-1/8 in)

1шт.

23

KHJ2336

HOSE

1800 mm (70-7/8 in)

1шт.

42

KHJ1507

HYDRAULIC HOSE,6.35 mm ID x 420.00 mm

1шт.

43

168728A1

HYDRAULIC HOSE,6.30 mm ID x 400.00 mm

1шт.

45

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

6шт.

46

154475A1

O-RING

1шт.

47

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

2шт.

48

154475A1

O-RING

1шт.

49

KHJ2437

MANIFOLD

1шт.

51

166052A1

BOLT

M10X25

2шт.

52

166351A1

BOLT,Sems, M10 x 20mm

M10X20

2шт.

54

KHJ2323

HOSE

1шт.

55

KHJ2418

HOSE

1шт.

56

KHJ2438

HOSE

1шт.

57

KHJ2439

HOSE

1шт.

68

KHJ17110

VALVE

1шт.

69

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

70

153081A1

WASHER

2шт.

71

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

72

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

74

KHJ2074

HOSE

1шт.

81

152747A1

ADAPTER

2шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

4шт.

96

154475A1

O-RING

1шт.

97

KHJ2136

ADAPTER

1шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

KHJ2349

HOSE

1шт.

104

KHJ2145

HOSE

1шт.

136

158842A1

PLUG

2шт.
