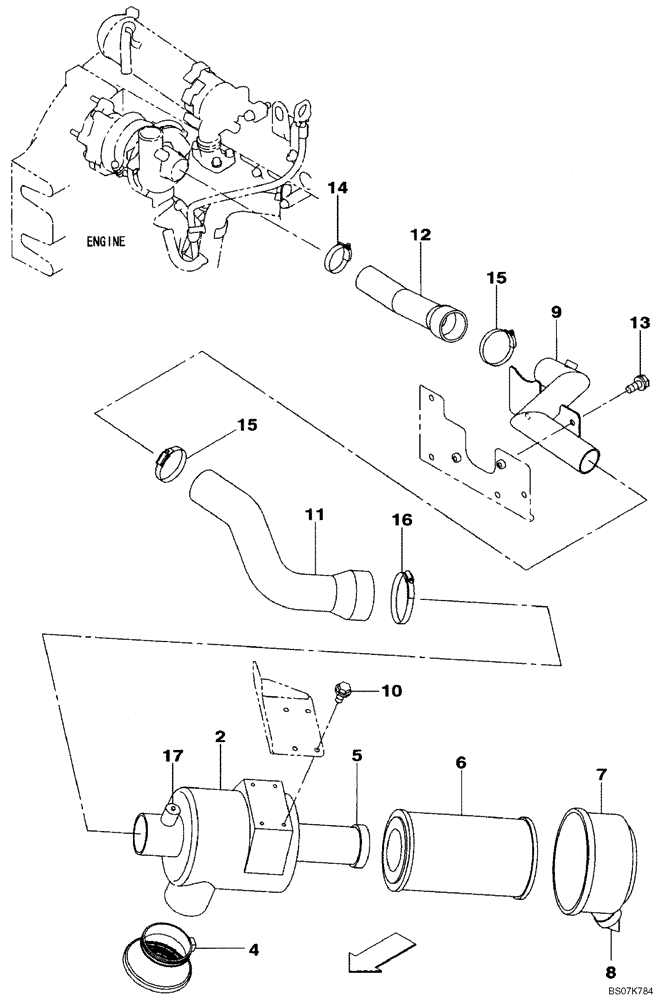

Запчасти Case CX135SR (02-03) - AIR CLEANER (02) - ENGINE

2

KMH10070

FILTER ASSY

Incl. 2-8

1шт.

4

165437A1

CAP

1шт.

5

87682993

AIR FILTER,91mm ID x 164.5mm OD x 347.5mm L

Primary, Replaces KMH0830

1шт.

6

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary, Replaces KMH0781

1шт.

7

KMH0782

COVER

1шт.

8

KBH0924

VALVE

Replaces KMH0783

1шт.

KMH10180

ADAPTER

For Valve KBH0924, Not Shown

1шт.

9

KMH10640

BRACKET

1шт.

KMH10850

BRACKET

BRACKET, Not Shown

1шт.

10

166350A1

BOLT

M8X20

4шт.

11

KMH10630

AIR FLEXIBLE

1шт.

12

KMH10200

AIR FLEXIBLE

1шт.

13

166052A1

BOLT

M10X25

2шт.

14

165793A1

COLLAR

1шт.

15

150736A1

COLLAR

2шт.

16

150905A1

CLAMP

1шт.

17

KSH0050

INDICATOR

1шт.
