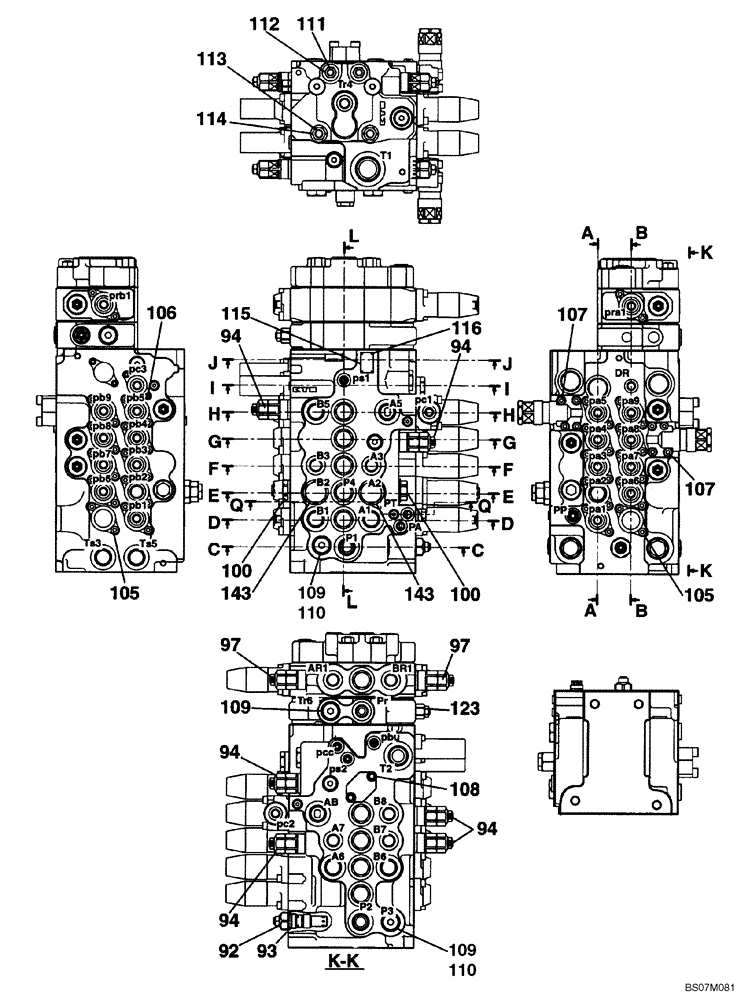

Запчасти Case CX135SR (08-25) - KMJ10690 VALVE ASSY, CONTROL - MODELS WITH DOZER BLADE (08) - HYDRAULICS

KMJ10690

CONTROL VALVE

Includes Parts On Figure(s) 08-25 - 08-31

1шт.

92

LJ01006

VALVE, PRESSURE RELI

EF

1шт.

93

155223A1

O-RING

1шт.

94

KMJ2914

VALVE PRESSURE RELIE

See Figure 08-31

6шт.

97

LJ01007

VALVE, PRESSURE RELI

EF See Figure 08-31

2шт.

100

165839A1

PLUG

See Figure 08-31

1шт.

105

LUC0120

BOLT,Hex Skt Hd

40шт.

106

LUC0118

BOLT,Hex Skt Hd

4шт.

107

108R008Z050N

BOLT

8шт.

108

108R010Z040B

BOLT

2шт.

109

163370A1

PLUG

Incl. 110

5шт.

110

154487A1

O-RING

1шт.

111

LB00894

ASSEMBLING ROD

2шт.

112

LUC0095

SPECIAL NUT

2шт.

113

LB00895

ASSEMBLING ROD

2шт.

114

LUC0094

SPECIAL NUT

2шт.

115

NSS

NOT SOLD SEPARAT

Plate

1шт.

116

NSS

NOT SOLD SEPARAT

Screw

4шт.

123

LJ01008

VALVE, PRESSURE RELI

EF

1шт.

143

LK00302

PLUG

2шт.
