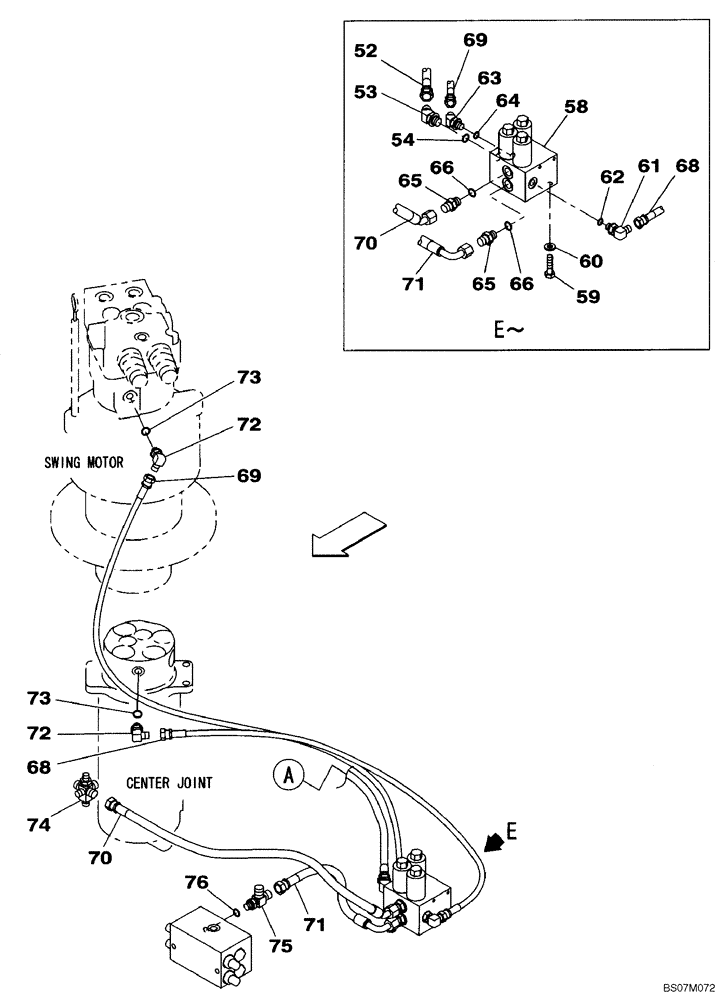

Запчасти Case CX135SR (08-16) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

52

KHJ2102

HOSE

1шт.

53

157584A1

ELBOW

Incl. 54

1шт.

54

154475A1

O-RING

1шт.

58

KHJ15440

SOLENOID VALVE

See Figure 08-17

1шт.

59

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

60

150409A1

WASHER

2шт.

61

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 62

1шт.

62

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

63

150933A1

ELBOW

Incl. 64

1шт.

64

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

65

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 66

2шт.

66

154475A1

O-RING

1шт.

68

KHJ2054

HOSE

1шт.

69

KHJ2062

HOSE

1шт.

70

KHJ2329

HOSE

1шт.

71

KHJ2169

HOSE

1шт.

72

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 73

2шт.

73

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

74

KHJ1967

ADAPTER

1шт.

75

162827A1

TEE

Incl. 76

1шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
