(02-02) - ENGINE OIL SUPPLY LINES

Запчасти Case CX135SR (02-02) - ENGINE OIL SUPPLY LINES (02) - ENGINE

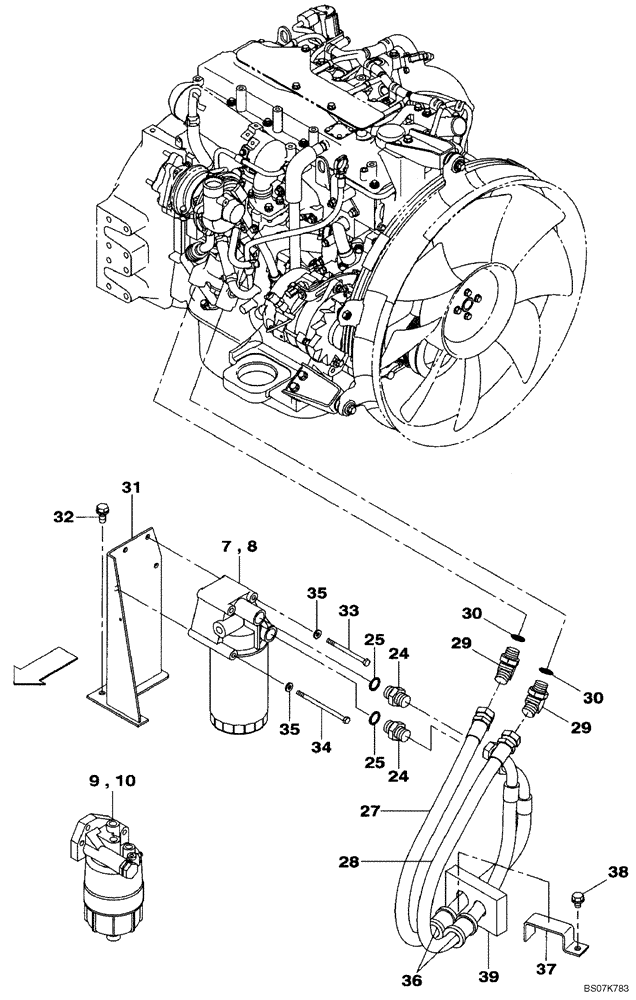

Схема запчастей Case CX135SR - (02-02) - ENGINE OIL SUPPLY LINES (02) - ENGINE
37
35
38
7
28
29
34
30
39
25
31
8
29
24
9
10
33
30
27
25
32
36
24
35
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

7

87365563

FILTER ASSY

Oil, See Figure 02-29

1шт.

8

87379813

ENGINE OIL FILTER

Element, See Figure 02-29

1шт.

9

87379042

FILTER ASSY

Fuel, See Figure 03-06

1шт.

10

87365565

FUEL FILTER

Element, See Figure 03-06

1шт.

24

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 25

2шт.

25

154503A1

O-RING

1шт.

27

KRH11420

HYDRAULIC HOSE

1шт.

28

KMH10780

HOSE ASSY.

1шт.

29

157586A1

ELBOW

Incl. 30

2шт.

30

154503A1

O-RING

1шт.

31

KMH10791

BRACKET

Replaces KMH10790

1шт.

32

166052A1

BOLT

M10X25

2шт.

33

102R008Y110R

BOLT

M8X110

2шт.

34

KHH0515

BOLT

M8X140

2шт.

35

153081A1

WASHER

4шт.

36

KHJ2023

HOSE CLAMP

2шт.

37

KHH12260

HOSE CLAMP

1шт.

38

166347A1

BOLT,Sems, M10 x 30mm

M10X16

1шт.

39

KMH10800

SEAL

CUSHION

1шт.
